1. What Is Radiation Cross-Linking?

Radiation cross-linking (also written as radiation crosslinking or radiation cross-linking) is a

physical modification process in which high-energy radiation (typically electron beam,

gamma rays or X‑rays) induces covalent bonds between polymer chains. This process converts a linear or

branched polymer into a three-dimensional network, improving thermal, mechanical, and

chemical resistance.

Unlike chemical cross-linking, radiation cross-linking does not require peroxides, sulfur, or other

chemical cross-linking agents. The energy from radiation directly generates free radicals along the

polymer backbone, which then recombine to form cross-links. As a result, radiation cross-linking

is often cleaner, more controllable, and more environmentally friendly.

2. Why Radiation Cross-Linking Is Important in Modern Industry

Advances in radiation cross-linking are closely linked to the growing demand for

high-performance materials in automotive, aerospace, electronics, medical technology, packaging and

energy applications. By adjusting radiation dose, atmosphere, and polymer formulation, manufacturers

can fine-tune properties such as:

• Heat resistance and thermal stability
• Mechanical strength and modulus
• Creep resistance at elevated temperature
• Stress-crack resistance and toughness
• Chemical resistance and solvent resistance
• Wear resistance and abrasion resistance
• Dimensional stability under load

These benefits make radiation cross-linking attractive for engineering plastics, insulation materials,

protective films, sealing systems, tubing, and functional components where durability is critical.

3. Types of Radiation Used for Cross-Linking

Different radiation sources can be used to induce cross-linking. The most common are electron beam

(EB), gamma rays, and increasingly, high-energy X‑rays. Each

technology offers specific advantages in penetration depth, processing speed, and equipment configuration.

3.1 Electron Beam Cross-Linking

Electron beam cross-linking uses accelerated electrons to deliver dose quickly and efficiently to

polymer products. Modern EB accelerators allow high-throughput, continuous processing

of tapes, wires, films, and extruded profiles. Advances in EB technology focus on:

• Improved beam control and dose uniformity
• Compact, energy-efficient accelerators
• Real-time dosimetry and dose mapping
• Integration in production lines for in-line cross-linking

3.2 Gamma Radiation Cross-Linking

Gamma radiation from cobalt-60 sources offers very deep penetration and uniform dose distribution

in bulk materials. It is widely used for:

• Medical devices where sterilization and cross-linking can be combined
• Thick wall tubing, large molded parts or dense products
• Cross-linking of specialty materials requiring long exposure

3.3 X‑Ray Radiation Cross-Linking

Industrial X‑ray systems convert high-energy electron beams into X‑rays by hitting a metal target.

This method combines adjustable on/off control with the penetration advantages of gamma rays.

Recent advances in radiation cross-linking include high-power X‑ray systems for

pallet-scale processing and large component modification.

4. Fundamentals of Radiation-Induced Cross-Linking Chemistry

During radiation cross-linking, high-energy photons or electrons interact with polymer chains and

generate excited states and free radicals. These reactive species initiate a variety

of reactions:

• Cross-linking: radical-radical combination forming covalent bonds between chains.
• Chain scission: breaking of polymer chains, which can reduce molecular weight.
• Oxidation: reaction with oxygen leading to peroxide and carbonyl formation.
• Grafting: radicals on the polymer react with added monomers or functional groups.

The balance between cross-linking and chain scission is critical. For many polyolefins and elastomers,

cross-linking dominates under optimized conditions. For some polymers, chain scission is more likely;

in these cases, additives or specific atmospheres are needed to promote a cross-linking pathway.

5. Polymers Suitable for Radiation Cross-Linking

Not all polymers behave the same under radiation. Materials that show a positive cross-linking response

(cross-linking > chain scission) are preferred for radiation cross-linking technologies.

5.1 Commonly Cross-Linked Polymers

5.2 Polymers Difficult to Cross-Link

Some polymers tend to undergo chain scission rather than cross-linking under radiation. Examples include:

• Polytetrafluoroethylene (PTFE) – typically degrades; used for controlled chain scission to reduce molecular weight.
• Polystyrene (PS) – may cross-link slightly but also suffers from degradation at high doses.
• Poly(methyl methacrylate) (PMMA) – often dominated by chain scission.

In these cases, radiation technology is used more for radiation degradation or

radiation grafting than for cross-linking.

6. Key Process Parameters in Radiation Cross-Linking

Proper control of process parameters is central to achieving reliable and reproducible

radiation cross-linked materials. Important variables include:

6.1 Absorbed Dose

The absorbed dose, expressed in kilogray (kGy), quantifies the energy deposited per unit mass.

Typical doses for radiation cross-linking range from about 25 kGy up to 250 kGy, depending on

polymer type and required properties.

6.2 Atmosphere and Temperature

Radiation cross-linking can be carried out:

• In air (oxygen present)
• Under inert gas (nitrogen, argon)
• Under partial vacuum or controlled humidity

Oxygen can lead to oxidative degradation, surface embrittlement, or discoloration. For sensitive

polymers or high doses, an inert atmosphere is preferred. Temperature during irradiation also

influences radical mobility, cross-linking rate, and crystallinity. Many industrial systems control

part temperature via cooling rollers, air flow, or staged passes.

6.3 Product Geometry and Density

Penetration depth of radiation depends on energy and product density. Thicker or denser materials

may require:

• Higher-energy electron beams or gamma/X‑ray processing
• Multiple-sided irradiation (top/bottom, multi-angle)
• Slower conveyor speeds to increase dose

7. Advantages of Radiation Cross-Linking Compared to Chemical Cross-Linking

The unique combination of flexibility, cleanliness and efficiency gives radiation cross-linking

several advantages over conventional chemical cross-linking methods such as peroxide or sulfur curing.

These benefits explain why advances in radiation cross-linking are strongly aligned with trends

in sustainability, resource efficiency, and high-precision manufacturing.

8. Property Improvements Achieved by Radiation Cross-Linking

Radiation cross-linking turns thermoplastic polymers into thermoset-like networks

while preserving many favorable processing features. Typical improvements include:

• Higher melting or softening temperature
• Improved hot-set and hot-creep resistance
• Better resistance to environmental stress cracking
• Reduced permanent deformation under load
• Increased wear resistance and fatigue resistance
• Enhanced resistance against oils, fuels, and solvents
• Improved aging behavior under heat and UV exposure

9. Industrial Applications of Radiation Cross-Linking

Radiation cross-linking technologies are used across a broad range of industries. The following

sections outline common sectors and typical application examples.

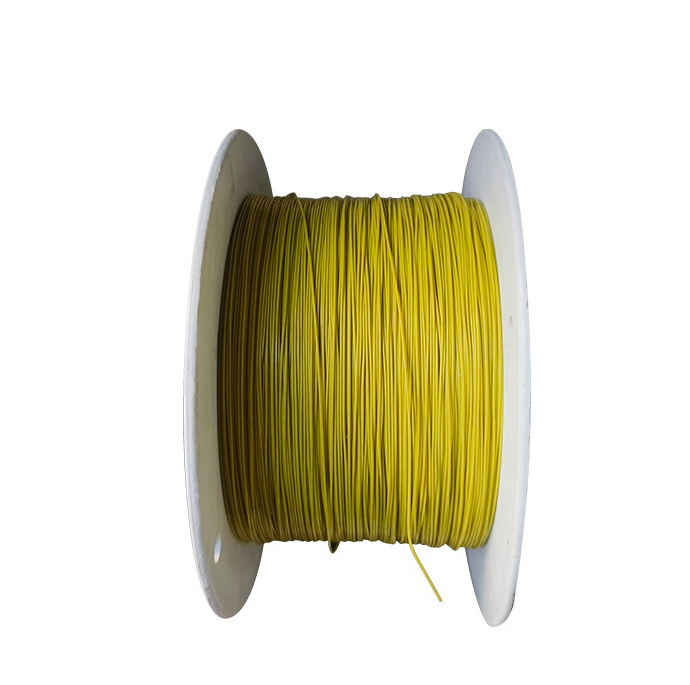

9.1 Wire and Cable Industry

In the wire and cable sector, radiation cross-linking is widely used to produce high-performance

cross-linked polyethylene (XLPE) and cross-linked polyolefin insulation and jacketing.

Key advantages include:

• Higher continuous operating temperatures
• Enhanced short-circuit temperature resistance
• Improved abrasion and chemical resistance
• Better resistance to cracking and deformation

Applications include automotive cables, appliance wires, low- and medium-voltage cables, solar cables,

data cables and flexible cords.

9.2 Heat-Shrink Products

Heat-shrink tubes, sleeves, and films are often produced from radiation cross-linked polyolefins.

Cross-linking gives the polymer elastic memory and allows it to be expanded and then

shrunk back around objects when heated. This is critical for:

• Electrical insulation and strain relief
• Cable splice and connector sealing
• Mechanical protection of sensitive components

9.3 Automotive and Transportation

In the automotive industry, advances in radiation cross-linking enable lightweight, durable

thermoplastic components. Cross-linked polyamides, polyolefins and elastomers are used for:

• Under-the-hood components exposed to heat and oil
• Clips, brackets, and fasteners with high dimensional stability
• Seals and gaskets with long-term durability
• Noise, vibration, and harshness (NVH) management elements

9.4 Medical Technology and Healthcare

Radiation cross-linking plays a role in medical devices, where sterilization and property modification

can be combined. Typical applications include:

• Catheters and tubing with improved kink resistance
• Implantable devices requiring high wear resistance
• Orthopedic components, where cross-linked UHMWPE is widely known (though produced by specialized processes)
• Medical films and packaging with enhanced toughness

9.5 Packaging Films and Foams

Radiation cross-linking is employed to upgrade packaging materials:

• Cross-linked polyethylene and polyolefin foams with improved compression set
• Shrink films with better tear resistance and clarity
• Barrier films with enhanced mechanical and thermal properties

9.6 Electronics and Electrical Engineering

In electronics, radiation cross-linking supports miniaturization, reliability, and safety:

• Insulating parts for transformers and motors
• Thin-wall insulating sleeves and tapes
• High-temperature stable connectors and housings

9.7 Specialty and Advanced Applications

Advances in radiation cross-linking also target:

• 3D printed parts, where post-print radiation cross-linking can improve heat and chemical resistance
• High-performance composite matrices
• Membranes and functional surfaces via radiation grafting and cross-linking

10. Role of Additives and Formulation in Radiation Cross-Linking

Although radiation cross-linking can occur without chemical initiators, many formulations use

cross-linking promoters or co-agents to optimize response.

Typical additive categories include:

• Polyfunctional monomers (triallyl cyanurate, triallyl isocyanurate, etc.)
• Silane coupling agents for combined silane and radiation cross-linking
• Stabilizers and antioxidants to control oxidative degradation
• Flame retardants compatible with radiation processing
• Fillers and reinforcing agents (e.g., mineral fillers, glass fibers)

Formulation design is critical for balancing cross-link density, mechanical properties, processability,

and long-term aging behavior.

11. Quality Control, Testing and Standards

To ensure performance and regulatory compliance, radiation cross-linked products are tested using

standard methods. Common test parameters include:

• Gel content (insoluble fraction indicating cross-link density)
• Differential scanning calorimetry (DSC) for melting behavior and crystallinity
• Tensile strength and elongation at break before and after aging
• Hot-set and hot-creep tests for cable insulation
• Thermal aging tests at elevated temperatures
• Chemical resistance and swelling tests

Various international and national standards are relevant, depending on industry and application.

These standards define requirements for dimensions, mechanical behavior, electrical properties, and

aging performance of radiation cross-linked materials.

12. Safety, Regulatory and Environmental Considerations

Industrial radiation cross-linking facilities operate under strict radiation protection regulations.

Key aspects include:

• Shielding against ionizing radiation for operators and the environment
• Monitoring systems for radiation levels and access control
• Compliance with national nuclear or radiation regulatory bodies
• Safe handling, storage and disposal of radioactive sources (for gamma facilities)

From an environmental perspective, radiation cross-linking is often considered a

clean technology:

• No process chemicals or solvents are necessary
• Energy usage can be lower compared to large curing ovens
• No combustion-related emissions or high greenhouse gas output from curing

At the same time, radiation cross-linked materials are generally not melt-recyclable due to their

three-dimensional network. Recycling routes often involve mechanical re-use, grinding into fillers,

or energy recovery. Current research focuses on recyclable cross-linkable systems

and reversible cross-links.

13. Emerging Trends and Advances in Radiation Cross-Linking

Advances in radiation cross-linking technology are driven by new materials, better process control and

integration with digital manufacturing. Notable trends include:

13.1 Precision Dose Control and Simulation

Modern dosimetry, 3D simulation and process monitoring tools enable:

• Highly uniform dose distributions in complex geometries
• Optimized conveyor speeds and product arrangements
• Traceable quality assurance and documentation

13.2 Integration With Additive Manufacturing

Radiation cross-linking can be applied as a post-treatment for 3D printed parts,

particularly in photopolymer and thermoplastic additive manufacturing. Post-cross-linking can

significantly enhance thermal stability and mechanical robustness.

13.3 X‑Ray and High-Energy Systems for Large Components

New high-energy X‑ray installations allow processing of:

• Large parts and densely packed products
• Palletized loads
• High-thickness materials with more uniform dose profiles

13.4 Sustainable and Reprocessable Cross-Linked Systems

Research continues into dynamic covalent networks and vitrimers, where cross-links can be rearranged

under specific conditions. Combining these chemistries with radiation cross-linking could lead to

reprocessable yet high-performance materials.

14. Typical Specification Checklist for Radiation Cross-Linked Products

When specifying a radiation cross-linked product, engineers and buyers usually define a combination

of material, process and performance parameters. A typical specification document may cover:

15. Selection Guide: When to Use Radiation Cross-Linking

Radiation cross-linking is particularly valuable when:

• Higher temperature resistance is needed without changing the base polymer family
• Chemical cross-linking would compromise dimensional accuracy or cause by-products
• Finished parts or assemblies must be upgraded after shaping or machining
• Fast, continuous processing is required for films, cables, or profiles
• Combined sterilization and property modification is desirable (medical devices)

When evaluating radiation cross-linking for a new product, typical questions include:

• Is the chosen polymer compatible with radiation cross-linking?
• What degree of cross-linking and which absorbed dose are required?
• How will cross-linking influence mechanical, electrical and thermal properties?
• Can the supply chain support radiation processing and quality documentation?

16. Frequently Asked Technical Questions about Radiation Cross-Linking

16.1 Does Radiation Cross-Linking Make Polymers Radioactive?

For typical industrial energies and materials, radiation cross-linking does not make

polymers radioactive. The energy transfer changes molecular bonds but does not create unstable nuclei.

Products can be safely handled immediately after processing once radiation exposure ends.

16.2 Can Radiation Cross-Linking Be Reversed?

Conventional covalent cross-links produced by radiation are largely irreversible under normal service

conditions. The material behaves like a thermoset and will not melt again. Degradation at very high

temperatures or in aggressive chemicals can break down the network, but this is typically not a

controlled or reversible process.

16.3 How Is the Degree of Cross-Linking Measured?

Degree of cross-linking is often assessed indirectly via gel content, swelling tests, or changes

in mechanical and thermal properties. For some polymer systems, specific correlations between dose

and cross-link density have been established empirically.

17. Conclusion: The Future of Radiation Cross-Linking

Radiation cross-linking has evolved into a versatile and efficient tool for tailoring polymer

properties without chemical cross-linking agents. Industrial implementation covers cables, films,

foams, molded parts, medical devices and high-tech components.

Ongoing advances in radiation cross-linking – including improved electron beam

technology, high-energy X‑ray systems, new cross-linkable polymer formulations, and integration into

digital manufacturing – will continue to expand the range of applications. As requirements for material

performance, sustainability, and reliability increase, radiation cross-linking will remain a key

technology for engineering high-value polymer systems.
