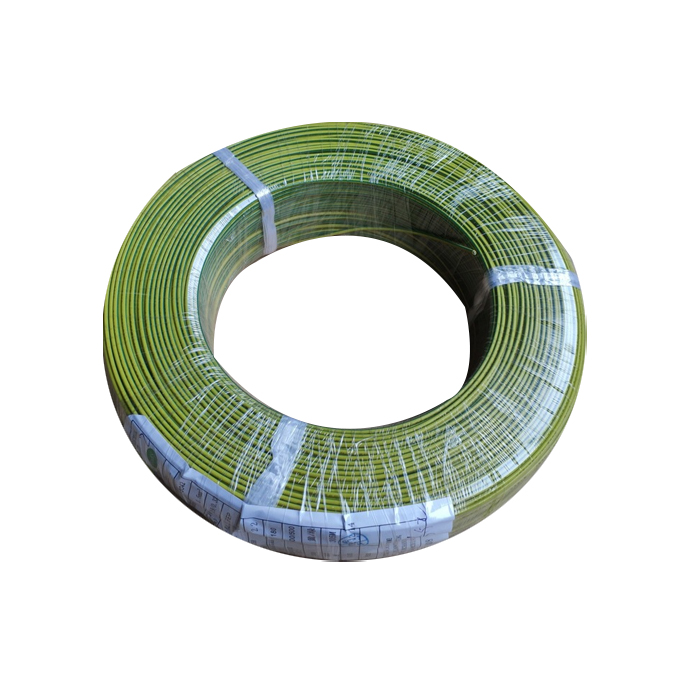

Applications of Teflon Multi-Core Sheathed Wire in Sensor Systems

Teflon multi-core sheathed wire is a high-performance cable solution widely used in modern sensor systems where stable signal transmission, resistance to heat, chemical exposure, and long-term reliability are critical. In industrial automation, medical devices, aerospace electronics, laboratory instruments, and precision monitoring equipment, sensor wiring must maintain accuracy while operating in demanding environments. This is where Teflon insulated multi-core sheathed wire becomes especially valuable.

Because sensor systems often require multiple signal channels within a compact installation space, multi-core construction is highly practical. Each conductor can carry power, ground, or sensor signals, while the Teflon sheath provides excellent protection against temperature extremes, abrasion, moisture, and aggressive chemicals. For SEO purposes and technical publishing, it is important to understand not only what this wire is, but also where it is used, why it is preferred, and what specifications matter when selecting it for sensor applications.

This article provides an original, industry-focused overview of Applications of Teflon Multi-Core Sheathed Wire in Sensor Systems, including definitions, benefits, common uses, technical characteristics, selection factors, and a detailed specification table. It is written for use in blogs, category pages, industry landing pages, and product knowledge sections.

What Is Teflon Multi-Core Sheathed Wire?

Teflon multi-core sheathed wire is a multi-conductor cable in which each inner core is individually insulated and then protected by an outer sheath made from Teflon, commonly PTFE (polytetrafluoroethylene) or related fluoropolymer materials. The term “multi-core” means that the cable contains several conductors inside one jacket, allowing multiple electrical channels to be routed through a single compact assembly.

In sensor systems, this design is especially useful because many sensors need several signal lines for measurement, reference, power, communication, shielding, or control. A Teflon sheath helps ensure that the wiring remains stable even in environments involving high temperatures, vibration, chemical vapor, oils, humidity, or frequent cleaning cycles.

Compared with standard PVC cables, Teflon multi-core sheathed wire offers stronger thermal resistance, better chemical resistance, lower friction, and improved performance in sensitive electronic systems. These characteristics make it suitable for both fixed installations and dynamic sensor assemblies.

Why Sensor Systems Need Specialized Wiring

Sensor systems are only as reliable as the signal paths that connect them. Even when a sensor itself is highly accurate, poor wiring can cause noise, drift, instability, short circuits, signal attenuation, or total failure. In industrial and precision environments, wiring must support accurate data capture over long periods of time.

Common challenges in sensor systems include:

• Electrical noise and electromagnetic interference (EMI)
• Temperature fluctuations
• Mechanical vibration and flexing
• Chemical contamination
• Space limitations inside devices or cabinets
• Need for multiple conductors in one cable
• Long-term durability and low maintenance requirements

Teflon multi-core sheathed wire addresses these challenges by combining multi-channel design with a high-performance fluoropolymer jacket. This is one reason it appears frequently in demanding sensor wiring applications.

Key Advantages of Teflon Multi-Core Sheathed Wire in Sensor Systems

Below are the main advantages that make Teflon multi-core sheathed wire a preferred choice for sensor system applications.

1. High Temperature Resistance

Teflon insulation can operate in elevated temperatures far beyond what many conventional wire jackets can tolerate. This is important in sensor systems installed near heat sources, engines, ovens, processing equipment, or sterilization environments. Stable insulation prevents signal degradation and preserves safety.

2. Excellent Chemical Resistance

Sensor wiring may be exposed to solvents, cleaning agents, fuels, lubricants, acids, alkalis, and process chemicals. Teflon sheathing provides strong resistance to many aggressive substances, helping preserve cable integrity and extend service life.

3. Reliable Signal Transmission

Multi-core construction allows multiple signals to travel through one cable assembly, reducing wiring complexity and improving organization. In sensor systems, this means cleaner installation, simpler routing, and better signal stability. When properly designed with shielding, Teflon multi-core wire can also support low-noise transmission for sensitive measurements.

4. Compact and Space-Saving Design

Modern sensors are often installed in compact housings, instruments, and control panels. A Multi-core cable reduces the need for separate wires, making it easier to manage space while maintaining a neat and functional layout.

5. Strong Mechanical Durability

Although Teflon is not always the most abrasion-resistant material compared with certain heavy-duty jackets, it performs very well in many sensor installations due to its combination of flexibility, low friction, and endurance under heat and chemicals. This supports stable long-term performance.

6. Low Friction Surface

The low-friction characteristics of Teflon help cables pass more easily through conduits, tight spaces, and moving assemblies. This is useful in sensor systems that require installation in enclosed environments or frequent movement.

7. Long Service Life

Because sensor systems are often expected to run continuously, reliability over time is crucial. Teflon multi-core sheathed wire supports long service life by resisting environmental damage and maintaining performance in difficult conditions.

Common Applications of Teflon Multi-Core Sheathed Wire in Sensor Systems

The use of Teflon multi-core sheathed wire spans many industries. Below are some of the most common sensor-related application areas.

Industrial Automation Sensors

In automated production environments, sensors monitor position, pressure, temperature, flow, vibration, and proximity. These systems often operate near motors, drives, heaters, and machines that generate heat and electrical interference. Teflon multi-core sheathed wire is well suited for these installations because it helps preserve signal quality and withstand harsh operating conditions.

Typical industrial sensor uses include:

• Proximity sensors
• Photoelectric sensors
• Pressure transducers
• Temperature probes
• Flow sensors
• Limit switches and feedback devices

Temperature Measurement Systems

Temperature sensors such as thermocouples, RTDs, and thermistors often require stable and clean wiring to ensure accurate readings. Teflon multi-core cables are frequently used because they tolerate heat while preserving insulation integrity and electrical consistency.

In temperature measurement applications, the cable must not introduce excessive resistance, noise, or signal drift. Multi-core sheathed wire allows temperature sensing lines and reference conductors to be grouped into one cable structure, simplifying installation while maintaining reliability.

Medical Sensor Devices

Medical equipment often involves strict electrical performance, compact cable routing, and resistance to sterilization or cleaning agents. Teflon multi-core sheathed wire is commonly found in sensor systems used in diagnostic devices, monitoring instruments, laboratory analyzers, and patient-side equipment.

Important reasons for use in medical sensor systems include:

• Stable electrical characteristics
• Resistance to repeated cleaning
• Compact routing in small devices
• Compatibility with sensitive measurements
• Support for long-term reliability

Aerospace and Aviation Sensors

Aerospace sensor systems operate in environments with temperature variation, vibration, lightweight design requirements, and high reliability demands. Teflon multi-core sheathed wire is used in many aircraft and aerospace sensing applications because of its thermal stability and ability to perform under challenging conditions.

Common aerospace sensor applications include:

• Cabin monitoring systems
• Engine sensors
• Fuel monitoring sensors
• Pressure and altitude systems
• Environmental control sensors

Laboratory and Analytical Instruments

Lab instruments often require very accurate sensor inputs for measurement and control. Teflon multi-core sheathed wire is suitable for analytical equipment because it resists contamination, handles heat, and supports organized multi-signal wiring inside compact instrument housings.

This is especially important in equipment that measures chemical composition, temperature, pressure, flow, or electrical properties. Stable cable performance helps improve repeatability and protects sensitive readings from external interference.

Automotive Sensor Systems

Modern vehicles use many sensors for engine control, safety, emissions, battery management, and cabin comfort. In demanding automotive environments, wiring must endure heat, vibration, oils, and long service cycles. Teflon multi-core sheathed wire can be used in selected automotive sensing applications where enhanced performance is needed.

Examples include:

• Engine bay temperature sensing
• Emissions monitoring systems
• Fuel and fluid level sensing
• Battery and power management sensors
• Precision electronic control systems

Food Processing and Sterile Environments

Sensor systems in food processing, pharmaceutical production, and sterile environments often face aggressive washdowns, cleaning chemicals, moisture, and temperature changes. Teflon multi-core sheathed wire supports these conditions by providing chemical resistance and stable insulation.

These benefits make it useful in:

• Temperature sensors in processing lines
• Level sensors in tanks and mixers
• Flow monitoring sensors
• Environmental monitoring systems

Research and Precision Measurement Systems

Research laboratories and metrology systems need highly stable and low-noise wiring. Teflon multi-core sheathed wire is often chosen for precision sensor circuits where small signal integrity matters. It helps reduce interference, supports repeatable readings, and maintains performance under experimental or controlled conditions.

How Teflon Multi-Core Sheathed Wire Improves Sensor Performance

In sensor systems, wire quality directly affects the accuracy and dependability of the measured data. Teflon multi-core sheathed wire contributes to performance in several ways.

Improved Signal Integrity

Sensor signals are often small and vulnerable to distortion. High-quality insulation and optional shielding help reduce crosstalk, leakage, and electromagnetic interference. As a result, the sensor output remains more stable and accurate.

Reduced Wiring Complexity

By combining multiple conductors inside one sheath, the cable simplifies assembly design. This is especially valuable in systems with multiple sensor channels or hybrid configurations involving signal, power, and communication lines.

Better Environmental Protection

Sensor installations may be exposed to heat, dust, steam, vibration, or chemicals. Teflon sheathing provides a protective barrier that helps prevent premature damage to the conductors inside.

Greater Reliability in Harsh Conditions

Because the cable maintains its properties across a wide temperature range and resists many environmental stressors, it is a dependable choice for sensor applications where downtime is costly or dangerous.

Typical Specifications of Teflon Multi-Core Sheathed Wire for Sensor Systems

The exact specification depends on application, conductor size, insulation structure, shielding, and compliance needs. The table below provides common industry-oriented characteristics for Teflon multi-core sheathed wire used in sensor systems.

Selection Factors for Sensor System Wiring

Choosing the right Teflon multi-core sheathed wire requires more than just selecting a temperature rating. The cable should match the sensor type, installation environment, and performance targets.

1. Number of Conductors

Determine how many signal, power, ground, or communication lines must be carried. A cable with too few cores will not support the full sensor system, while excessive cores may increase cost and size unnecessarily.

2. Conductor Gauge

The wire gauge must be chosen based on current, signal type, and physical space. Smaller gauges are suitable for low-current sensor signals, while larger gauges may be needed for power or longer runs.

3. Temperature Requirement

Evaluate the maximum operating temperature near the sensor. Teflon jackets are a strong choice where heat resistance is essential, but the complete cable construction should be verified for the specific environment.

4. Chemical Exposure

Consider whether the cable will contact oils, solvents, coolants, cleaning chemicals, steam, or process media. Teflon offers superior chemical resistance in many cases.

5. EMI and Noise Sensitivity

If the sensor system measures low-level signals, shielding may be important. Shielded Teflon multi-core sheathed wire helps reduce interference from motors, relays, drives, and radio-frequency sources.

6. Flexing and Movement

For moving machines or dynamic sensors, the cable should support the required flex life. Multi-core wire with suitable strand construction and jacket design is recommended.

7. Environmental and Regulatory Needs

Some installations require specific electrical, safety, flame, or material compliance. The selected cable must align with the target industry and market requirements.

Comparison: Teflon Multi-Core Sheathed Wire vs. Other Common Sensor Cables

Design Considerations for Sensor Cable Assemblies

When using Teflon multi-core sheathed wire in sensor systems, cable design plays an important role in performance. Even the best materials can underperform if the assembly is poorly engineered.

Important design considerations include:

• Core pairing: Signal and return lines may need to be grouped to reduce noise.
• Shielding: Foil or braided shielding can improve immunity to interference.
• Color coding: Clear identification helps simplify installation and maintenance.
• Twisting: Twisted pairs may improve noise rejection for sensitive sensor signals.
• Jacket thickness: The sheath must balance protection with flexibility and size.
• Connector compatibility: The cable should match the connector style and termination method.
• Bend radius: Proper routing prevents mechanical stress and conductor damage.

Benefits for OEMs, System Integrators, and Maintenance Teams

Teflon multi-core sheathed wire supports different stakeholders in the sensor system value chain.

For OEMs

Original equipment manufacturers benefit from compact wiring, enhanced reliability, and the ability to design products for demanding environments.

For System Integrators

Integration is easier when multiple sensor lines can be routed through fewer cables. This helps reduce clutter and improves serviceability.

For Maintenance Teams

Durable cable construction reduces the frequency of wiring failures, making maintenance schedules more predictable and lowering downtime risk.

Common Performance Expectations in Real-World Sensor Installations

In practical use, Teflon multi-core sheathed wire is expected to deliver:

• Stable sensor readings over time
• Reduced failure from heat or chemicals
• Organized wiring in compact spaces
• Lower interference in electrically noisy environments
• Long-term durability under continuous operation

These outcomes are especially valuable where sensor accuracy directly impacts product quality, equipment safety, process control, or data integrity.

Frequently Used Sensor Types with Teflon Multi-Core Sheathed Wire

SEO-Relevant Industry Keywords Naturally Associated with This Topic

For content strategy and search visibility, the following keyword themes are closely related to Applications of Teflon Multi-Core Sheathed Wire in Sensor Systems:

• Teflon multi-core sheathed wire
• PTFE sensor cable
• multi-core sensor wire
• high temperature sensor cable
• chemical resistant sensor wiring
• shielded sensor cable
• industrial sensor cable assembly
• precision signal transmission wire
• sensor system wiring solution
• fluoropolymer insulated cable

These terms can be used naturally in headings, metadata, internal links, and supporting content to strengthen topical relevance. However, keyword usage should always remain readable and informative rather than forced.

Conclusion

Teflon multi-core sheathed wire is a highly valuable solution for sensor systems that demand stable performance, compact design, and resistance to heat, chemicals, and electrical interference. From industrial automation and laboratory instruments to medical devices, aerospace systems, and precision measurement equipment, this type of cable plays an essential role in maintaining reliable sensor operation.

Its ability to combine multiple conductors with durable Teflon insulation makes it suitable for demanding environments where conventional cable materials may fail. For engineers, integrators, and technical content publishers, understanding the applications, advantages, and specifications of Teflon multi-core sheathed wire is important for selecting the right wiring solution and communicating its value clearly.

Whether used for temperature sensing, signal routing, process monitoring, or high-reliability control systems, Teflon multi-core sheathed wire remains a strong choice for modern sensor applications.
