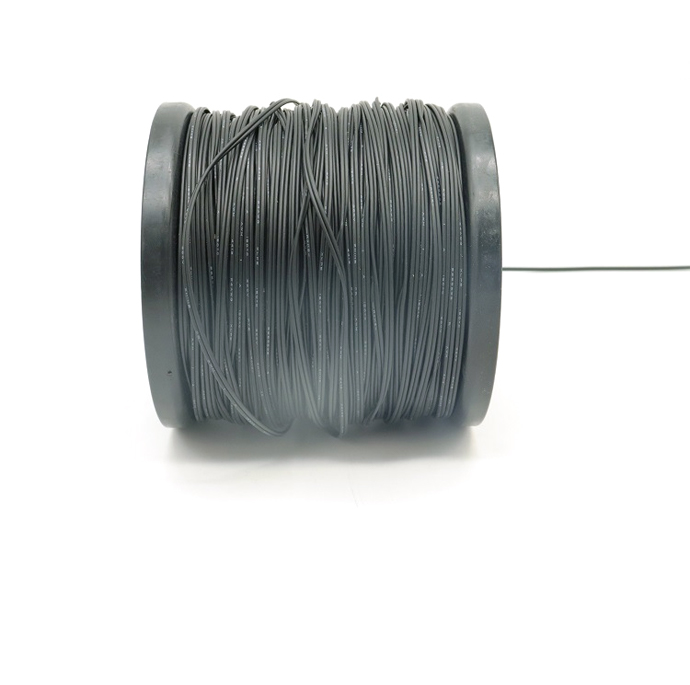

1. What Is Durable VDE Teflon Wire?

Durable VDE Teflon wire is an electrical wire designed and tested according to

relevant VDE (Verband der Elektrotechnik, Elektronik und Informationstechnik) standards and insulated

with Teflon-type fluoropolymer materials such as PTFE, FEP, or PFA. These fluoropolymers provide

excellent temperature resistance, outstanding chemical resistance, and long service life in harsh

industrial environments, especially in chemical plants.

The term “Teflon wire” in industrial practice usually refers to wire insulated with:

• PTFE (Polytetrafluoroethylene)
• FEP (Fluorinated Ethylene Propylene)
• PFA (Perfluoroalkoxy Alkane)

All of these are fluoropolymer materials with similar core properties: non-stick surface, high

temperature endurance, non-flammability, and strong resistance to solvents, acids, alkalis,

and hydrocarbons. When these materials are applied as insulation to copper conductors and the finished

design complies with VDE requirements, the result is a durable VDE Teflon wire

suitable for harsh chemical processing applications.

2. Why Chemical Plants Need Durable VDE Teflon Wire

Chemical plants are among the most demanding environments for electrical wiring. Major stress factors include:

• Continuous exposure to corrosive chemicals and vapors
• High operating temperatures near reactors, distillation columns, and furnaces
• Rapid temperature changes during process upsets or cleaning cycles
• Mechanical stress caused by vibration, cable routing, and maintenance activities
• Strict safety regulations governing fire behavior and electrical reliability

In these conditions, standard PVC-insulated or rubber-insulated wires can age quickly: insulation

becomes brittle, cracks, or swells when in contact with chemicals, leading to short circuits,

equipment failures, and safety risks.

Durable VDE Teflon wire is specifically designed to handle this combination of stress factors.

Its fluoropolymer insulation retains flexibility over a wide temperature range and provides long-term

resistance to aggressive chemicals, moisture, UV radiation, and ozone. When selected and installed

correctly, VDE Teflon wire can significantly extend wiring life and reduce unscheduled downtime in

chemical plants.

3. Key Features of VDE-Compliant Teflon Wire

VDE Teflon wire combines the benefits of fluoropolymer insulation with compliance to

European VDE standards for electrical safety and quality. Important features include:

• High dielectric strength for safe insulation even at high voltages
• Wide temperature range, often from -60 °C up to +200 °C or higher
• Non-flammable or low flammability with low smoke and toxic gas emission
• Excellent chemical resistance to acids, bases, solvents, and fuels
• Low surface friction for easy pulling through ducts and trays
• Excellent weather and UV resistance for outdoor and exposed installations
• Good mechanical robustness against abrasion and cut-through

Because of its combination of electrical, thermal, and chemical performance, VDE Teflon wire is used for:

• Instrumentation and control circuits
• Signal and sensor wiring
• Power supply to small motors, actuators, and valves
• Connections inside control panels located near chemical process units

4. Teflon Insulation Types Used in Chemical Plants

When discussing durable VDE Teflon wire, the insulation material is central. The three most common

fluoropolymers are PTFE, FEP, and PFA. Each has specific advantages, and the selection depends on

operating temperature, flexibility needs, and chemical exposure.

4.1 PTFE Insulated Wire

PTFE (Polytetrafluoroethylene) is the classic “Teflon” material. It is widely used

in durable VDE Teflon wire for environments where very high temperatures and aggressive chemicals are present.

4.2 FEP insulated wire

FEP (Fluorinated Ethylene Propylene) combines good temperature resistance with

excellent processability. It is often used in durable VDE Teflon wire where slightly lower maximum

temperature is acceptable, but good flexibility and smooth surface are needed.

4.3 PFA Insulated Wire

PFA (Perfluoroalkoxy Alkane) is a high-performance fluoropolymer combining many of

the chemical and temperature advantages of PTFE with improved melt-processability and mechanical

behavior. It is frequently chosen for more demanding reliable service in durable VDE Teflon wire.

5. Advantages of Durable VDE Teflon Wire in Chemical Plants

When chemical plant designers and maintenance engineers choose durable VDE Teflon wire, they gain

multiple performance and lifecycle advantages over conventional wire types.

5.1 Extended Service Life

Fluoropolymer insulation maintains mechanical and electrical integrity even after years of exposure to:

• High ambient temperatures
• Continuous vibration
• Chemical vapors and liquid leaks
• Frequent cleaning and washdown procedures

This durability directly reduces replacement frequency and unplanned shutdowns caused by cable failure.

5.2 Improved Safety and Reliability

VDE standards specify testing procedures for dielectric strength, insulation resistance, and fire

behavior. When the insulation is Teflon-based, the resulting wire offers:

• Stable electrical performance across wide temperature ranges
• Resistance to tracking, arcing, and insulation breakdown
• Reduced risk of fire propagation along cable routes

5.3 Excellent Chemical Resistance

Durable VDE Teflon wire handles contact with a wide variety of chemicals used in chemical plants:

• Strong inorganic acids (e.g., sulfuric, nitric, hydrochloric)
• Alkaline solutions (e.g., sodium hydroxide, potassium hydroxide)
• Organic solvents (e.g., ketones, aromatics, chlorinated compounds)
• Fuels and lubricants

While compatibility must always be validated against specific chemicals and concentrations,

fluoropolymers offer far better resistance than most conventional insulation materials.

5.4 High Temperature Performance

Many process units operate near or above 100 °C. Standard cables can soften or deform at these

temperatures. PTFE and PFA insulated VDE Teflon wire can operate up to 200 °C or more, preserving:

• Insulation thickness
• Dielectric strength
• Mechanical flexibility

5.5 Reduced Maintenance Costs

By using a more durable insulation system, chemical plants can:

• Extend preventive maintenance intervals
• Reduce cable replacement frequency
• Shorten planned outages due to fewer wiring issues

Although durable VDE Teflon wire typically has a higher initial purchase cost, its total cost of

ownership over the lifespan of the plant is often lower compared to cheaper materials that fail more frequently.

6. Typical Applications in Chemical Processing Facilities

Durable VDE Teflon wire is not limited to one area of a chemical plant. It can be specified in many

process and utility systems:

• Reaction and distillation units with high ambient temperatures
• Pump stations handling aggressive fluids
• Heat exchanger and furnace zones
• Tank farms for acids, solvents, and fuels
• Off-gas treatment and flue gas cleaning systems
• Wastewater and effluent treatment areas

In these areas, durable VDE Teflon wire is used for the following functions:

• Temperature, pressure, and flow sensors
• Level measurement in storage tanks
• Control valve and actuator wiring
• Motor and pump control circuits
• Signal communication between field devices and central control systems

7. Technical Specifications for Durable VDE Teflon Wire

When selecting VDE Teflon wire for a chemical plant project, engineering teams typically look at several

technical parameters. The following table summarizes typical ranges for widely used single-core

fluoropolymer-insulated wires.

The actual specification of a durable VDE Teflon wire always depends on individual product design and

the particular VDE standard applied. However, the data above gives a useful reference range when

planning cabling concepts for new chemical plants or plant expansions.

8. Chemical Resistance and Temperature Ratings

Chemical resistance and temperature capability are crucial for any wiring system in a chemical plant.

Durable VDE Teflon wire achieves its high performance by combining fluoropolymer insulation with

VDE-compliant construction.

8.1 Chemical Compatibility Overview

While detailed resistance data depend on individual compounds, the following table provides a simplified

overview of typical behavior for PTFE, FEP, and PFA insulation in durable VDE Teflon wire.

In practice, engineers should still verify chemical compatibility with material datasheets and, where

necessary, perform tests with specific process fluids and operating conditions.

8.2 Temperature Classes

The selection of a durable VDE Teflon wire must also consider temperature class. The table below

summarizes typical continuous operating temperature classes for different fluoropolymer insulations.

9. Conductor Options: Copper, Tinned Copper, and Nickel-Plated Copper

The conductor metal in durable VDE Teflon wire significantly influences performance in chemical plants.

Common options include:

• Plain copper – standard electrical performance and high conductivity
• Tinned copper – enhanced corrosion resistance and solderability
• Nickel-plated copper – improved oxidation resistance at high temperatures

For many chemical plant applications, Tinned Copper Conductors are used because they

offer improved corrosion resistance, especially in humid and chemically active atmospheres, while

remaining cost-effective.

10. Single-Core vs. Multi-Core VDE Teflon Cables

Durable VDE Teflon wire is often supplied as a single-core wire. However, in many

installations, multi-core VDE Teflon cables are used to reduce space and simplify routing.

10.1 Single-Core Wire

Single-core durable VDE Teflon wire is favored for:

• Internal connections inside panels and junction boxes
• Short runs from terminal blocks to field devices
• Areas where individual wiring is required or retrofitted

10.2 Multi-core cables

Multi-core designs, which use several insulated Teflon wires under an additional sheath, are favorable when:

• Long cable runs are needed between control rooms and field instrumentation
• Multiple signals must be routed together to reduce cable tray congestion
• Shielding is needed for EMC performance

11. Installation Guidelines for Chemical Plants

Proper installation is essential for maximizing the performance of durable VDE Teflon wire in chemical plants.

11.1 Routing and Mechanical Protection

When routing VDE Teflon wire:

• Follow plant cable routing standards for separation of power and control circuits
• Use appropriate cable trays, conduits, or ducts in heavily trafficked areas
• Protect wires from sharp edges with grommets and bushings
• Respect minimum bending radii specified by the manufacturer

11.2 Termination and Connection

Fluoropolymer insulation requires attention during stripping and termination:

• Use tools specifically designed for Teflon insulation to avoid conductor nicking
• Select terminals compatible with fine-stranded conductors
• For tinned copper conductors, standard crimp and solder methods are usually suitable
• Verify torque values for screw or clamp terminals to ensure reliable contact

11.3 Environmental Considerations

Although VDE Teflon wire has excellent resistance to harsh environments, it remains essential to:

• Avoid unnecessary contact with concentrated chemicals where mechanical damage may expose conductors
• Prevent standing liquid in cable trays
• Consider drip loops or protective conduits near equipment with potential leaks

12. Selecting the Right Durable VDE Teflon Wire

Engineers responsible for cable specification in chemical plants should consider the following

selection steps:

1. Define the operating environment: temperature range, chemical exposure,

   mechanical stress, and installation location (indoor, outdoor, buried, tray, etc.).

2. Determine electrical requirements: voltage level, current carrying capacity,

   circuit type (power, control, instrumentation), and required shielding.

3. Choose insulation material: PTFE, FEP, or PFA based on temperature and

   chemical demands.

4. Select conductor size and type: cross-section based on current and voltage

   drop, plus plain, tinned, or nickel-plated copper depending on corrosion and temperature.

5. Check VDE standards and certifications: ensure the chosen wire complies

   with relevant VDE requirements for safety and performance.

By following these steps, project teams can specify a durable VDE Teflon wire solution optimized

for each application within the chemical plant.

13. Comparison with Other Industrial Wire Types

Durable VDE Teflon wire is not the only option for industrial environments, but it stands out in

chemical plants due to its particular performance mix. The table below compares it with other

common insulation types.

This comparison highlights why durable VDE Teflon wire is a preferred choice for critical control

and instrumentation circuits in chemical processing areas with both high temperature and aggressive chemicals.

14. Typical Data Sheet Example for Durable VDE Teflon Wire

The following example table illustrates the type of information usually found in a data sheet for a

generic durable VDE Teflon wire used in chemical plants. Values are indicative only and must not be

used as design limits.

15. Design Considerations for New Chemical Plant Projects

When planning a new chemical plant or major modernization, durable VDE Teflon wire should be

integrated into the overall cabling concept:

• Identify high-risk zones with high temperature or aggressive chemicals
• Select Teflon-insulated conductors for instrumentation and control wiring in those zones
• Use standard industrial cables in less demanding areas to optimize overall cost
• Standardize color coding and wire types to simplify maintenance and documentation

Early specification of VDE Teflon wire allows coordinated selection of junction boxes, glands,

and connectors compatible with fluoropolymer-insulated conductors and the plant’s environmental conditions.

16. Maintenance and Inspection

Although durable VDE Teflon wire offers long service life, regular inspection is still necessary:

• Check for mechanical damage, cuts, and abrasion along cable routes
• Inspect terminations for signs of overheating or corrosion
• Verify clamping and cable tie conditions; avoid excessive compression
• Document any changes or repairs in plant wiring diagrams

Because Teflon insulation remains flexible over time, visual inspection is usually sufficient to

detect major issues. Electrical tests like insulation resistance measurement can be added in critical circuits.

17. Summary: Benefits of Durable VDE Teflon Wire for Chemical Plants

Durable VDE Teflon wire provides a robust solution for the complex requirements of chemical plants.

By combining fluoropolymer insulation such as PTFE, FEP, or PFA with VDE-compliant construction,

this type of wire offers:

• Excellent resistance to aggressive chemicals and solvents
• Wide operating temperature range up to 200 °C and beyond
• High dielectric strength and reliable insulation performance
• Low flammability and self-extinguishing behavior
• Long service life, reducing downtime and maintenance costs

For designers, project engineers, and maintenance teams in the chemical industry, understanding

the characteristics of durable VDE Teflon wire is essential for building safe, reliable, and

cost-effective electrical infrastructures that can withstand harsh process conditions.
