1. What Are UL Fluoroplastic Cables?

UL fluoroplastic cables (also called UL fluoropolymer cables) are insulated wires and multi‑core cables that use fluoroplastic materials such as PTFE, FEP, PFA, ETFE, or PVDF as insulation and/or jacket, and which are tested and certified according to UL (Underwriters Laboratories) standards.

The key features of UL fluoroplastic cables include:

• High temperature resistance compared with PVC, PE, or rubber cables.
• Excellent chemical resistance to oils, solvents, fuels, acids, and alkalis.
• Outstanding electrical properties, low dielectric constant, low dissipation factor.
• Good flame resistance and low smoke, often halogen‑free behavior.
• Long service life in harsh, high‑reliability environments.

UL certification provides a recognized proof that these fluoroplastic cables meet defined safety, flammability, and performance requirements, which is important for export to North America and for compliance with many industrial customers’ specifications.

2. Understanding UL Certification for Fluoroplastic Cables

2.1 What Does UL Certification Mean for Cables?

For fluoroplastic cables, UL certification covers:

• Construction (conductor material, insulation, jacket, wall thickness, etc.).
• Electrical tests (voltage rating, dielectric withstand, insulation resistance).
• Flammability tests (VW‑1, FT1, FT2, etc., depending on the style).
• Temperature rating (e.g., 105 °C, 150 °C, 200 °C, 250 °C).
• Marking and traceability requirements on the cable surface.

When purchasing UL fluoroplastic cables, it is important to verify that the product has a valid UL file number and follows a UL style that fits your application.

2.2 Common UL Styles Related to Fluoroplastic Cables

UL has many individual style numbers for wires and cables using fluoroplastic insulation. While the exact details belong to UL standards, the following table shows common characteristics of selected UL fluoroplastic cable types often found in industrial and electronic applications. The data is indicative and may vary by specific design.

When specifying a UL fluoroplastic cable, many engineers start from a known UL style number and then define AWG size, stranding, shielding, jacket color, and other details according to their system requirements.

3. Common Fluoroplastic Materials Used in UL Cables

Fluoroplastic cables can use different fluoropolymer compounds. Each has specific strengths and weaknesses. Understanding the differences helps you choose the best UL fluoroplastic cable for your application.

3.1 Overview of Fluoroplastic Insulation Materials

3.2 Material Selection Factors

When selecting a UL fluoroplastic cable, consider:

• Maximum operating temperature of the equipment and environment.
• Chemical exposure (solvents, acids, base, fuels, cleaning agents).
• Required mechanical strength and abrasion resistance.
• Flexibility and bending radius requirements.
• Cost constraints relative to performance needs.

For extremely high temperatures and aggressive chemicals, PTFE or PFA UL cables are often preferred. For applications needing strong mechanical robustness, ETFE or PVDF may offer a balanced solution.

4. Advantages of UL Fluoroplastic Cables

4.1 High Temperature and Thermal Stability

UL fluoroplastic cables can withstand temperatures far above the ratings of PVC or rubber cables. Many UL fluoroplastic cable types are rated for continuous operation at 150–200 °C, and some PFA or PTFE constructions reach up to 250 °C. This makes them suitable for:

• Industrial ovens and heating equipment.
• Steel, glass, and ceramic manufacturing lines.
• Power electronics and high‑density circuitry.

4.2 Chemical and Corrosion Resistance

Fluoroplastic materials are among the most chemically inert polymers. UL fluoroplastic cables provide long‑term durability in environments containing:

• Strong acids and alkalis.
• Hydrocarbon solvents and fuels.
• Cleaning agents and industrial fluids.

This resistance reduces the risk of insulation cracking, swelling, or degradation, and helps maintain electrical safety over the cable’s life.

4.3 Electrical Performance and Signal Integrity

Fluoropolymers feature low dielectric constant and low dissipation factor. For UL fluoroplastic cables this means:

• Stable impedance for data, RF, or high‑speed digital signals.
• Low signal attenuation in instrumentation and communication systems.
• High insulation resistance over a wide temperature range.

4.4 Flame Resistance and Safety

Many UL fluoroplastic cable designs pass stringent flame tests such as VW‑1. Fluoropolymers often exhibit:

• High limiting oxygen index (LOI).
• Low smoke generation compared with traditional polymers.
• Very low halogen content or halogen‑free behavior in some formulas.

These properties contribute to higher safety standards in closed environments such as control rooms, vehicles, ships, and aircraft interiors.

4.5 Durability and Long Service Life

UL fluoroplastic cables offer excellent aging resistance. They maintain mechanical and electrical performance under repeated thermal cycling and environmental stress, which reduces unplanned downtime and maintenance for critical systems.

5. Typical Applications of UL Fluoroplastic Cables

Because of their combination of thermal stability, chemical resistance, and robust electrical performance, UL fluoroplastic cables are widely used in demanding sectors:

• Industrial automation: control cabinets, motors, sensors, actuator wiring in hot or chemically aggressive areas.
• Process industries: chemical plants, refineries, pharmaceutical production, food processing, and semiconductor manufacturing.
• Aerospace and defense: aircraft wiring, satellite harnesses, avionics, radar systems.
• Automotive and e‑mobility: engine compartment wiring, battery management systems, EV power electronics.
• Power generation: turbines, generators, nuclear and conventional power plants.
• Medical and laboratory equipment: sterilizable devices, diagnostic instruments, analytical equipment.
• Test and measurement: high‑frequency cables, probe leads, high‑voltage test leads operating at elevated temperatures.

When purchasing UL fluoroplastic cables for any of these applications, the key is to match the cable’s certification, material, structure, and mechanical properties to the actual operating conditions.

6. Key Factors to Consider When Purchasing UL Fluoroplastic Cables

The following factors are the most important technical and commercial considerations for buyers, engineers, and procurement teams.

6.1 Voltage Rating and Insulation Thickness

The voltage rating is a primary selection criterion. UL fluoroplastic cables are commonly available at:

• 300 V (equipment internal wiring, signal, low‑power circuits).
• 600 V (power circuits, motors, industrial control cables).
• Other ratings depending on style and construction (e.g., 1000 V, 150 V limited circuits).

To ensure safety and compliance:

• Verify the UL style supports your required system voltage.
• Check insulation wall thickness and dielectric strength requirements for your design.
• Consider operating environment (e.g., presence of moisture, pollution, or altitude) which may require additional safety margin.

6.2 Temperature Rating and Thermal Environment

Every UL fluoroplastic cable is assigned a maximum operating temperature rating. When purchasing:

• Determine the ambient temperature around the cable.
• Estimate the conductor temperature rise under load (current carrying capacity).
• Add a safety margin for potential hot spots or irregular airflow.

For example, if ambient is 120 °C and conductor heating adds 30 °C, a cable rated to at least 150 °C is required, but selecting a 200 °C rated UL fluoroplastic cable may increase reliability.

6.3 Conductor Material and Size (AWG)

UL fluoroplastic cables typically use:

• Tinned copper conductors to improve solderability and corrosion resistance.
• Bare copper or silver‑plated copper for special high‑temperature or RF applications.

The conductor cross‑section or AWG size affects ampacity, voltage drop, and flexibility. When purchasing:

• Select AWG based on current load and maximum voltage drop allowed.
• Consider stranding class; more strands yield higher flexibility but may increase cost.
• Follow applicable codes or internal design standards for minimum conductor size.

Values are indicative only; always consult applicable standards, UL tables, and derating curves when designing.

6.4 Cable Construction: Single Core vs. Multi‑Core

UL fluoroplastic cables are available as:

• Single‑conductor wires for internal wiring, hook‑up wire, and point‑to‑point connections.
• Multi‑core cables with several insulated conductors under an overall fluoroplastic jacket, often with fillers and shields.

When purchasing multi‑core UL fluoroplastic cables, consider:

• Number of cores and conductor identification (color code, number print).
• Core lay‑up (twisted pairs, triads, concentric lay) for noise reduction or balanced signals.
• Overall jacket thickness and outer diameter, which affect bending radius and space in cable trays or conduits.

6.5 Shielding Requirements

Shielding is critical when UL fluoroplastic cables carry sensitive or high‑frequency signals. Typical shielding options include:

• Braided shield (tinned copper, bare copper, or alloy) for good coverage and mechanical robustness.
• Aluminum/polyester foil shields with a drain wire for high coverage and lighter weight.
• Combined shields (foil + braid) for superior EMI/RFI performance.

To specify shielding correctly, identify:

• Required shield coverage percentage (e.g., ≥85 %).
• Frequency range and type of interference (radiated, conducted, near‑field, far‑field).
• Whether pair shielding (for twisted pairs) or overall shielding is needed.

6.6 Mechanical Strength, Flexibility, and Bend Radius

Although fluoroplastics can be relatively stiff compared with some elastomers, UL fluoroplastic cables can be optimized for flexibility by using:

• Fine‑stranded conductors.
• Thin but robust fluoroplastic jackets.
• Appropriate fillers or separators to distribute bending stress.

When purchasing, define:

• Required minimum bend radius in installation and during operation.
• Number of flexing cycles (static installation vs. drag chain or robotic application).
• Expected mechanical loads (pulling tension, crush forces, vibration).

6.7 Environmental Conditions: Chemicals, UV, and Moisture

In addition to temperature and chemicals, other environmental factors affect UL fluoroplastic cable selection:

• UV exposure: some fluoropolymers have excellent weathering resistance, which is advantageous for outdoor installations.
• Moisture and water immersion: evaluate water absorption of the fluoroplastic and verify UL ratings regarding wet locations if applicable.
• Radiation: in nuclear facilities or space applications, choose materials like ETFE that tolerate radiation better than many other polymers.

6.8 Flame Rating, Smoke, and Toxicity

For many applications, the fire performance of UL fluoroplastic cables is a primary purchasing factor. Key criteria include:

• UL VW‑1 flame test compliance for single wires.
• Compliance with building or transit fire standards (for example, plenum or riser requirements in some regions, or vehicle‑specific tests).
• Low smoke and halogen‑free behavior where occupant safety and electronic equipment protection are important.

Even though many fluoroplastics already exhibit inherent flame resistance, always confirm the exact flame test rating of the cable you purchase.

6.9 Standards, Regulations, and Compatibility

Besides UL, UL fluoroplastic cables may need to comply with:

• CSA (Canadian Standards Association) for Canada.
• IEC or EN standards for global markets.
• RoHS, REACH, and other environmental regulations.

If your equipment is exported worldwide, it is advantageous to choose UL fluoroplastic cables that also meet multiple international standards to simplify approvals.

6.10 Color Coding and Identification

Fluoroplastic jackets and insulation can be pigmented in various colors. When purchasing UL fluoroplastic cables, consider:

• Required conductor colors according to your wiring diagrams or industry norms.
• Printing and marking requirements (UL style, voltage, temperature rating, size, lot number).
• Special identification needs such as meter marks, serial numbers, or barcodes on the jacket.

Clear and consistent identification reduces wiring errors and supports traceability in regulated industries.

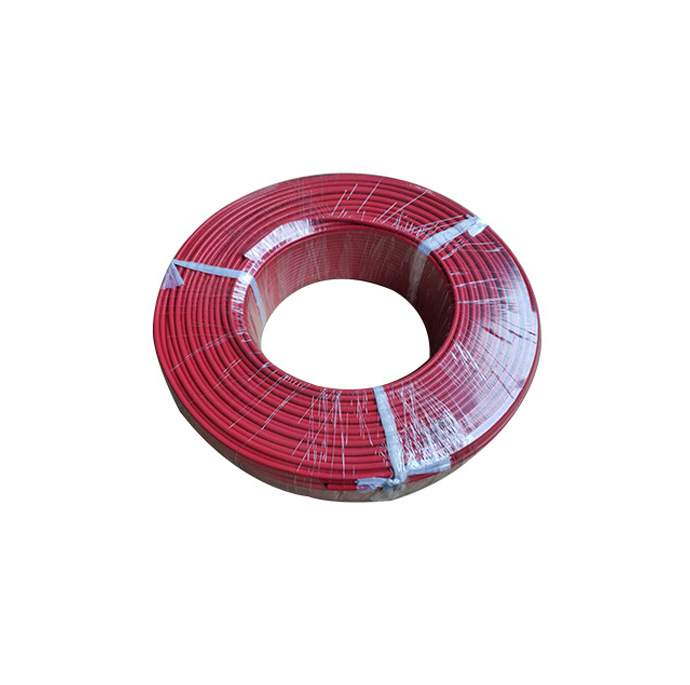

6.11 Packaging and Delivery Form

UL fluoroplastic cables are supplied in different packaging forms:

• Spools / reels (small reels for hook‑up wire, large drums for power or multi‑core cables).
• Cut‑to‑length pieces for assembly lines or panel shops.
• Pre‑assembled harnesses (where allowed by procurement strategy and internal policies).

When purchasing, define unit length, acceptable tolerances, and any special packaging requirements such as returnable drums, moisture protection, or multi‑reel splits.

7. Example Technical Specifications for UL Fluoroplastic Cables

The following tables provide example specification parameters commonly considered in RFQs and technical datasheets for UL fluoroplastic cables. Values are indicative and for guideline purposes only.

7.1 Example Specification: Single‑Core UL fluoroplastic wire

7.2 Example Specification: Multi‑Core UL Fluoroplastic Control Cable

8. Practical Purchasing Checklist for UL Fluoroplastic Cables

Before finalizing a purchase, engineers and buyers can use the following checklist to ensure that the selected UL fluoroplastic cable meets all requirements.

• Application Details

  • What is the main function of the cable (power, control, data, sensor)?
  • Is the cable for internal wiring, interconnection, or field installation?

• Electrical Requirements

  • Nominal system voltage and overvoltage conditions.
  • Maximum current per conductor and allowable voltage drop.
  • Signal frequency and integrity requirements (for data cables).

• Thermal and Environmental Conditions

  • Minimum and maximum ambient temperature.
  • Presence of oils, solvents, chemicals, or radiation.
  • Indoor vs. outdoor installation, UV exposure, moisture level.

• Mechanical Requirements

  • Fixed installation or flexible, moving application.
  • Required bend radius and number of bending cycles.
  • Expected mechanical stresses: pulling tension, vibration, abrasion.

• Safety and Compliance

  • Required UL style and file number.
  • Flame rating (VW‑1, additional fire tests if needed).
  • Other standards: CSA, IEC, RoHS, REACH, sector‑specific rules.

• Cable Construction

  • Number of cores, AWG size, and insulation material.
  • Shielding type and coverage, presence of drain wire.
  • Jacket material, color, and wall thickness.

• Identification and Packaging

  • Conductor color codes and required print legends.
  • Length per reel, tolerance, and type of drum or spool.
  • Any special packaging (e.g., cleanroom, moisture barriers).

• Cost and Logistics

  • Budget constraints vs. performance requirements.
  • Forecasted annual usage and minimum order quantities.
  • Lead time, shipping conditions, and storage environment.

9. Comparison: UL Fluoroplastic Cables vs. Conventional Cables

When deciding whether to invest in UL fluoroplastic cables instead of conventional PVC or rubber cables, the following comparison can help clarify the benefits and trade‑offs.

In environments where failure is unacceptable or maintenance is costly, the higher initial cost of UL fluoroplastic cables is often offset by longer service life and reduced downtime.

10. Design and Installation Tips for UL Fluoroplastic Cables

Even the best UL fluoroplastic cable can underperform if not installed properly. During purchasing, also plan for proper installation practices.

• Respect minimum bend radius: fluoroplastic insulation can be more rigid; sharp bends may cause micro‑cracks over time.
• Avoid excessive pulling force: use correct pulling heads and lubricants if needed.
• Check compatibility with connectors: ensure that connector terminations, seals, and grommets are suitable for the cable’s OD and jacket material.
• Plan for thermal expansion: at high temperatures, components expand; allow some slack and consider cable clamps designed for high‑temperature environments.
• Maintain shielding effectiveness: specify correct shield termination methods and 360‑degree grounding if EMC performance is crucial.

11. Conclusion

Purchasing UL fluoroplastic cables is a strategic decision for any project that requires high temperature capability, strong chemical resistance, robust electrical properties, and proven safety performance. By understanding UL styles, insulation materials such as PTFE, FEP, PFA, ETFE, and PVDF, and by carefully evaluating voltage, temperature, shielding, mechanical and environmental needs, buyers and engineers can select cable constructions that provide reliable long‑term service.

Using a structured checklist, referring to technical specification tables, and aligning cable characteristics with real‑world conditions will help ensure that the chosen UL fluoroplastic cable delivers high performance, compliance, and cost‑effective operation across the entire life cycle of the system.
