1. Introduction to Cross-Linked Polyethylene Irradiation Lines

A cross-linked polyethylene irradiation line is a production system that uses high-energy radiation, typically electron beam (e-beam), to create chemical crosslinks inside polyethylene materials. The irradiation line converts standard thermoplastic polyethylene into thermoset-like cross-linked polyethylene (XLPE) with improved mechanical, thermal, and chemical properties.

In an industrial context, the cross-linked polyethylene irradiation line is designed for continuous, high-throughput processing of products such as:

• Wire and cable insulation and jacketing
• Pipes and tubing for hot water and heating systems
• Heat-shrinkable tubes and components
• Foams for automotive, construction, and packaging
• Sheets, films, and molded parts

The growing adoption of XLPE in both traditional and emerging applications creates substantial future opportunities for cross-linked polyethylene irradiation lines, ranging from new product development to line upgrades and digital optimization.

2. Definition: What Is a Cross-Linked Polyethylene Irradiation Line?

A cross-linked polyethylene irradiation line is an integrated production line where polyethylene materials are exposed to controlled doses of ionizing radiation to induce crosslinking. The line typically includes:

• Material feeding and conveying systems
• Pre-treatment zones (drying, pre-heating, guiding)
• Radiation unit (mostly electron beam accelerator, occasionally gamma)
• Cooling or post-treatment zones
• Winding, cutting, stacking, or packaging systems
• Process monitoring and control systems

Cross-linked polyethylene (XLPE) produced on this type of line exhibits a three-dimensional network structure formed through covalent bonds between polymer chains. This structure is responsible for the enhanced performance of XLPE compared with non-crosslinked polyethylene.

3. Types of Crosslinking for Polyethylene

Cross-linked polyethylene can be produced by several methods. The irradiation line focuses on radiation crosslinking, which offers specific advantages over chemical methods.

3.1 Main Crosslinking Methods

3.2 Specific Role of XLPE Irradiation Lines

The XLPE irradiation line is specialized in radiation crosslinking. Unlike chemical crosslinking methods, the irradiation line relies on physical energy input, providing:

• On-demand crosslinking without chemical additives
• Consistent crosslinking degree across large production volumes
• Flexibility to process different polyethylene grades and product geometries

4. How an XLPE Irradiation Line Works

The cross-linked polyethylene irradiation line usually operates as a continuous process. The core principle is the exposure of polyethylene to controlled radiation doses that generate free radicals, which then form covalent crosslinks between polymer chains.

4.1 Key Process Steps

1. Material Preparation

   • Extrusion of wire, cable, pipe, film, foam, or molded part using standard polyethylene or special irradiation-grade polyethylene.
   • Conditioning of products (cooling, drying, spooling) prior to irradiation.

2. Feeding into the Irradiation Line

   • Unwinding or loading of products on conveyors, rollers, or trolleys.
   • Alignment and tension control for continuous products like wires and cables.

3. Exposure to Electron Beam or Gamma Radiation

   • Products enter the radiation zone of the cross-linked polyethylene irradiation line.
   • Electron beam accelerators deliver high-energy electrons, usually in the 0.5 MeV to 10 MeV range.
   • Dose is adjusted according to product thickness, desired crosslinking degree, and material formulation.

4. Cooling and Stabilization

   • After irradiation, materials may require cooling to stabilize dimensions and properties.
   • Some lines include annealing or controlled cooling stages to optimize performance.

5. Quality Control and Testing

   • Measurement of crosslink degree (gel content tests, DSC analysis).
   • Mechanical tests (tensile, elongation, impact) and electrical tests for XLPE cables.

6. Finishing and Packaging

   • Rewinding, cutting to length, printing, or labeling.
   • Final packaging for shipment or further processing.

4.2 Typical Process Parameters

5. Advantages of Radiation Cross-Linked Polyethylene

Using an XLPE irradiation line offers a set of benefits that drive its adoption in different industries.

5.1 Performance Advantages

• Higher Thermal Resistance: Cross-linked polyethylene can withstand elevated temperatures without melting, making it suitable for hot water pipes, high-temperature cables, and automotive components.
• Improved Mechanical Strength: XLPE shows better tensile strength, abrasion resistance, and stress-crack resistance compared with non-crosslinked polyethylene.
• Enhanced Chemical Resistance: The three-dimensional network structure improves resistance to solvents, oils, fuels, and cleaning agents.
• Better Environmental Stress Cracking Resistance (ESCR): XLPE resists cracking under combined mechanical and chemical stress, which is critical for pipes and tanks.
• Memory Effect for Heat-Shrink Products: Radiation crosslinking stabilizes the "memorized" shape, which recovers upon heating in heat-shrink tubes and sleeves.

5.2 Process and Production Advantages

• Clean Technology: No need for chemical crosslinking agents; reduces residual chemicals and simplifies regulatory compliance.
• On-Demand Crosslinking: Extrusion and crosslinking can be decoupled; producers can extrude in one location and irradiate elsewhere.
• High Throughput: Modern cross-linked polyethylene irradiation lines can process large volumes at high speed.
• Precise Control: Dose and crosslinking level are precisely adjustable, allowing fine-tuning for specific applications.
• Flexibility: Single line can process diverse product sizes, shapes, and polyethylene grades with proper setup.

5.3 Sustainability and Regulatory Advantages

• Reduced Chemical Use: Less reliance on peroxides, silanes, and catalysts leads to cleaner production.
• Energy Optimization Opportunities: Modern e-beam systems can be integrated with energy-saving features and smart controls.
• Improved Product Lifetime: Longer service life of XLPE products reduces material consumption over time.

6. Typical Specifications of Cross-Linked Polyethylene Irradiation Lines

Specifications for a cross-linked polyethylene irradiation line vary depending on capacity, product range, and targeted applications. The following tables summarize typical technical parameters and XLPE material properties relevant to irradiation-based crosslinking.

6.1 Typical Irradiation Line Technical Specifications

6.2 Typical Properties of Radiation Cross-Linked Polyethylene (XLPE)

7. Main Application Areas for Radiation Cross-Linked Polyethylene

The cross-linked polyethylene irradiation line serves many sectors where XLPE replaces or complements traditional materials.

7.1 Wire and Cable Industry

One of the largest uses of XLPE irradiation lines is in the wire and cable sector. XLPE offers superior electrical and thermal performance, making it suitable for:

• Low, medium, and high voltage power cables
• Automotive wiring harnesses
• Communication and data cables
• Railway and shipboard cables

7.2 Pipes and Tubing

Radiation cross-linked polyethylene pipes and tubes are used in:

• Hot and cold water plumbing systems
• Floor heating circuits
• Automotive cooling and fuel systems (certain components)

While chemical crosslinking is widely used in pipes, irradiation lines can be attractive for specific geometries, thin-wall tubing, and specialty pipe systems where fast, precise crosslinking is necessary.

7.3 Heat-Shrinkable Products

Heat-shrink tubing and sleeves are classic applications for cross-linked polyethylene irradiation lines. The process usually involves:

1. Extruding and irradiating the PE tubing to create crosslinked structure.
2. Expanding the tubing at high temperature to a larger diameter.
3. Cooling while expanded so that the crosslinked network "memorizes" the expanded shape.

When heated during installation, the heat-shrink tubing recovers to its original size, creating tight seals around cables, joints, and connections.

7.4 XLPE Foams and Sheets

Radiation crosslinking is widely used to produce closed-cell polyethylene foams with uniform structure. Typical uses include:

• Thermal and acoustic insulation materials
• Automotive interior parts, gaskets, and seals
• Sports, leisure, and protective padding products
• Construction expansion joint fillers

Foam producers use cross-linked polyethylene irradiation lines to stabilize cell structure and achieve required compression and resilience properties.

7.5 Films, Sheets, and Molded Parts

Some specialized XLPE irradiation lines handle films, sheets, and molded parts to provide:

• Improved heat resistance for packaging films
• Better tear and puncture resistance
• Dimensional stability in high-temperature conditions

8. Comparison: Irradiation Crosslinking vs. Chemical Crosslinking

When selecting technology for producing cross-linked polyethylene, producers compare irradiation lines with chemical crosslinking methods. The table below outlines key differences.

9. Future Opportunities for Cross-Linked Polyethylene Irradiation Lines

The potential of cross-linked polyethylene irradiation lines extends beyond current mainstream applications. Ongoing trends in electrification, sustainability, and advanced manufacturing open up new business and technology opportunities.

9.1 Electrification and Energy Transition

Global electrification, renewable energy integration, and grid modernization drive demand for high-performance cables and components. XLPE irradiation lines can benefit in several ways:

• High-voltage cables: Higher voltage levels require improved insulation reliability. Radiation crosslinked XLPE offers stable dielectric properties at elevated temperatures.
• Electric Vehicle (EV) Wiring: EVs demand lightweight, thermally stable wiring systems. XLPE-insulated wires processed on irradiation lines can meet stringent automotive standards.
• Charging Infrastructure: Fast-charging stations need robust cables and connectors that withstand high currents and outdoor conditions, favoring XLPE-based solutions.

9.2 Lightweight and Miniaturized Components

Across sectors, components become smaller, lighter, and more integrated. This trend creates opportunities for XLPE irradiation technology:

• Thin-Wall Insulation: Irradiation lines allow thin-wall wire insulation with high temperature ratings, enabling compact cable harnesses.
• Micro and Specialty Tubing: Crosslinked micro-tubes for medical devices, sensors, and microfluidic systems can be processed on specialized irradiation lines.
• High-Density Interconnects: High-performance XLPE insulators can support dense connectors in electronics and industrial systems.

9.3 Sustainability and Circular Economy

Sustainability is a central driver of future opportunities for cross-linked polyethylene irradiation lines. Key aspects include:

• Reduced Chemical Additives: Irradiation eliminates or minimizes chemical crosslinkers, aligning with stricter environmental regulations.
• Durable Products with Longer Lifetimes: XLPE products with extended life reduce overall resource consumption.
• Potential for Reprocessing Strategies: While crosslinked materials are not simply melted and re-extruded, advanced strategies for mechanical recycling and energy recovery can benefit from predictable XLPE formulations produced by irradiation.

9.4 Advanced Foams and Insulation Materials

Building and construction sectors continue to demand better insulation materials for energy-efficient buildings and infrastructure. Future opportunities include:

• High-Performance Thermal Insulation: XLPE foams offer low thermal conductivity, light weight, and good moisture resistance.
• Fire Performance Improvements: Integration of flame-retardant formulations with XLPE created by irradiation lines could produce safer building materials.
• Acoustic Insulation: XLPE foams can be tailored for sound absorption and vibration damping in buildings and transport.

9.5 Smart Manufacturing and Digitalization

The integration of digital technologies into cross-linked polyethylene irradiation lines will shape future competitiveness:

• Real-Time Dose Monitoring: Digital control systems measure and adjust dose in real time, ensuring consistent crosslinking degrees.
• Predictive Maintenance: Sensor networks and analytics anticipate equipment wear, reducing downtime.
• Production Data Analytics: Process data can be used to optimize energy consumption, throughput, and product quality.

9.6 Emerging Applications

Beyond conventional sectors, several emerging fields could leverage cross-linked polyethylene irradiation lines:

• Medical Devices: Biocompatible XLPE components with controlled mechanical properties in catheters, implants, and medical tubing.
• Hydrogen and Alternative Fuels: Tubing and sealing components compatible with hydrogen or alternative fuels may benefit from tailored XLPE formulations.
• Smart Grids and Sensors: Durable insulating materials for smart sensors and grid monitoring systems.

10. Design Considerations for XLPE Irradiation Lines

To exploit future opportunities, the design and configuration of cross-linked polyethylene irradiation lines must be carefully planned.

10.1 Product Range and Flexibility

• Define target products (cables, foams, tubes, films) and dimensions.
• Select suitable beam energy and power for required penetration and throughput.
• Design product handling systems (conveyors, winding equipment) for quick changeover.

10.2 Quality and Process Control

• Implement robust dosimetry systems and traceability for each batch.
• Integrate automated inspection for dimensions, defects, and mechanical properties.
• Use statistical process control to maintain stable line operation.

10.3 Safety and Compliance

• Ensure adequate radiation shielding and access control.
• Include redundant interlocks, alarms, and emergency stop devices.
• Train staff in radiation safety and process operation.

10.4 Energy and Cost Efficiency

• Optimize beam utilization by matching line speed, beam power, and dose.
• Recover waste heat where practical.
• Analyze total cost of ownership, including maintenance and utilities.

11. Market Trends Influencing XLPE Irradiation Lines

The future of cross-linked polyethylene irradiation lines is shaped by several market trends that create both challenges and opportunities.

11.1 Regulatory and Safety Standards

Stricter regulations on safety, fire performance, and environmental impact affect materials used in buildings, transportation, and power infrastructure. XLPE can help manufacturers meet compliance requirements by providing:

• Stable, high-temperature insulation for electrical systems
• Improved mechanical integrity in extreme environments
• Potentially lower emission of hazardous substances during use

11.2 Regional Industrialization and Infrastructure Projects

Growing economies are investing heavily in grid expansion, transportation networks, and urban development. This expansion requires large quantities of:

• Power and communication cables with XLPE insulation
• Plumbing and heating systems using crosslinked pipes and tubes
• Insulation foams and sealing materials for buildings

As these projects scale up, demand for cross-linked polyethylene irradiation capacity increases, stimulating investment in new lines.

11.3 Technological Integration Across Value Chains

Polymer producers, compounders, converters, and end-users increasingly collaborate to optimize materials and processes. This creates opportunities to:

• Develop specialized polyethylene grades optimized for irradiation crosslinking.
• Standardize performance specifications across industries.
• Co-design cable systems and XLPE insulation to meet future grid requirements.

12. Implementation Strategies for XLPE Irradiation Technology

Organizations considering investment in cross-linked polyethylene irradiation lines can explore multiple strategies, depending on their scale and market positioning.

12.1 In-House Irradiation Facilities

Large manufacturers of cables, foams, or pipes may build in-house irradiation lines to:

• Gain full control over crosslinking quality and scheduling.
• Reduce logistics costs by processing near extrusion facilities.
• Integrate irradiation data into quality management systems.

12.2 Contract Irradiation Services

Smaller or specialized producers can use existing irradiation service providers (if available in their region) to:

• Avoid major capital investment in radiation equipment and shielding.
• Test new XLPE products and market acceptance before scaling up.
• Focus internal resources on extrusion, formulation, and product design.

12.3 Hybrid Approaches and Joint Ventures

To capture wider market opportunities, companies may collaborate on shared irradiation facilities or hybrid models, combining:

• Shared investment in cross-linked polyethylene irradiation lines.
• Joint development of advanced XLPE materials.
• Mutual access to process data and market channels.

13. Frequently Asked Questions About Cross-Linked Polyethylene Irradiation Lines

13.1 What is the main purpose of a cross-linked polyethylene irradiation line?

The main purpose is to transform standard polyethylene into cross-linked polyethylene (XLPE) by exposing the material to controlled doses of high-energy radiation. The resulting XLPE has improved thermal, mechanical, chemical, and electrical properties suitable for demanding applications such as cables, pipes, heat-shrink products, and foams.

13.2 Which radiation sources are commonly used?

Electron beam (e-beam) accelerators are the most common radiation sources used in cross-linked polyethylene irradiation lines. Some facilities may use gamma radiation for certain applications, but e-beam provides higher throughput and more controllable process conditions for most industrial XLPE products.

13.3 How does the irradiation process affect the recyclability of polyethylene?

After crosslinking, polyethylene becomes more thermoset-like and cannot be remelted and re-extruded in the same way as uncrosslinked polyethylene. However, cross-linked polyethylene can still be mechanically recycled into certain products or used for energy recovery. The predictable, well-defined crosslink structure produced by irradiation can support the development of specialized recycling and re-use strategies.

13.4 What are the thickness limitations for radiation crosslinking?

Penetration depth of electrons depends on their energy. As a general guideline, electron beam systems with beam energies up to about 10 MeV can fully crosslink polyethylene with thicknesses up to approximately 20–30 mm in a single pass, depending on density and configuration. Multi-pass or two-sided irradiation can increase effective thickness capacity.

13.5 Why is XLPE widely used in cable insulation?

XLPE provides an excellent combination of dielectric strength, thermal stability, mechanical toughness, and moisture resistance. These properties make cross-linked polyethylene insulation a preferred choice for power cables, particularly where high operating temperatures and long service life are required.

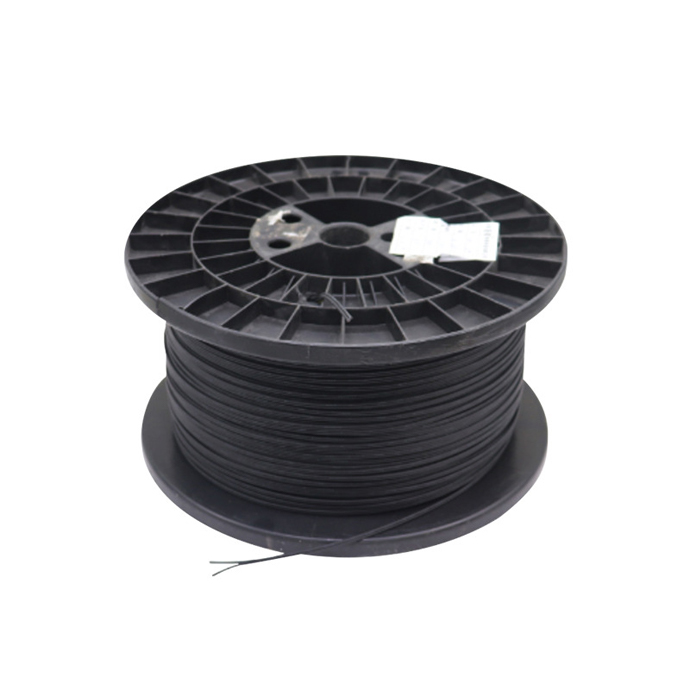

14. Conclusion: Strategic Role of XLPE Irradiation Lines in the Future

The cross-linked polyethylene irradiation line is a crucial technology for producing high-performance materials used in energy, construction, transportation, electronics, and many other sectors. By enabling rapid, clean, and precisely controllable crosslinking, irradiation lines support the evolution of modern infrastructure and advanced products.

Future opportunities for cross-linked polyethylene irradiation lines are driven by:

• Expanding electrification and the need for reliable XLPE-insulated cables.
• Stricter environmental and safety regulations encouraging cleaner crosslinking methods.
• Growth in high-performance foams, heat-shrink products, and specialty tubing.
• Digitalization and smart manufacturing, enabling optimization of dose, energy use, and product quality.

Organizations that understand the capabilities and design considerations of XLPE irradiation technology are well-positioned to capture these opportunities and contribute to the development of durable, efficient, and sustainable products across multiple industries.
