Testing Methods for Extra-Soft Silicone Wire Durability

Testing Methods for Extra-Soft Silicone Wire Durability

Extra-soft silicone wire is widely used in applications that demand high flexibility, stable electrical performance, and long service life under thermal stress.

Typical uses include medical devices, wearable electronics, robotics, consumer electronics, high-temperature appliances, and automotive harnesses near hot engine or battery components.

Because these cables must endure repeated bending, torsion, elevated temperatures, and exposure to oils or cleaning agents, testing methods for extra-soft silicone wire durability are crucial for product qualification, compliance, and reliability.

This guide provides a detailed, SEO-friendly overview of common durability tests for extra-soft silicone wire. It covers mechanical, electrical, thermal, chemical, and environmental testing methods, relevant international standards, and typical specification tables.

All information is generic and industry-wide, without reference to specific brands or manufacturers.

1. Overview of Extra-Soft Silicone Wire

1.1 What Is Extra-Soft Silicone Wire?

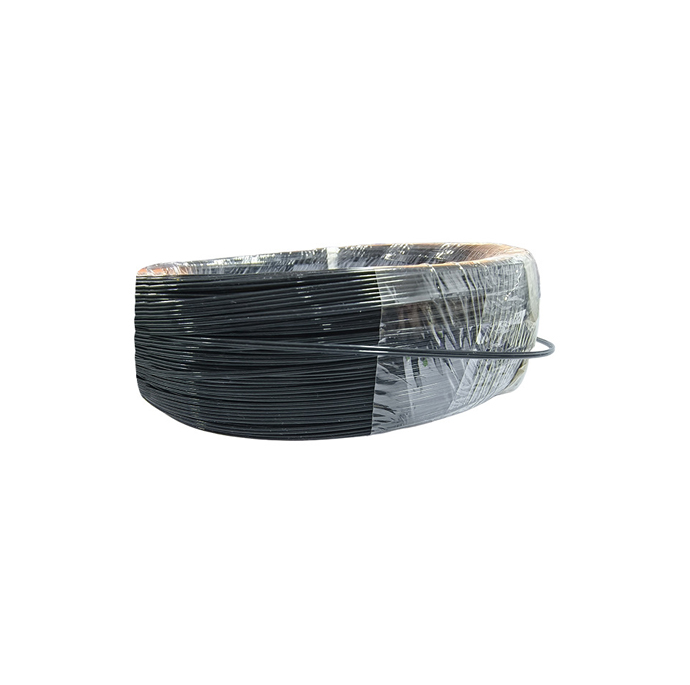

Extra-soft silicone wire is an electrical conductor insulated with highly flexible silicone rubber compounds.

Its defining feature is exceptional softness and flexibility compared to standard PVC or cross-linked polyolefin wires.

The conductor is usually fine-stranded copper or tinned copper, which further enhances flexibility and flex life.

The combination of ultra-fine stranding and soft silicone insulation allows tight bending radii, repeated flexing, and easy routing in compact devices.

1.2 Key Performance Requirements

Typical performance targets for extra-soft silicone wire durability include:

High flex life and resistance to repeated bending and torsion

Stable electrical properties over a wide temperature range (e.g. −60 °C to +200 °C)

Good dielectric strength and insulation resistance

Thermal aging resistance at continuous elevated temperatures

Resistance to flame, arc tracking, and electrical breakdown

Resistance to oils, cleaning agents, sweat, body fluids, and common chemicals

Low smoke and low toxicity characteristics in some applications

Compliance with safety and performance standards (e.g. UL, IEC, ISO)

Because these requirements are demanding, a robust portfolio of durability tests for extra-soft silicone wire is necessary to validate performance during design and production.

2. Importance of Durability Testing for Extra-Soft Silicone Wire

2.1 Why Durability Testing Matters

Durability testing of extra-soft silicone wire helps to:

Predict service life under mechanical, thermal, electrical, and environmental loads.

Prevent field failures such as short circuits, open circuits, insulation cracking, or burning.

Ensure safety compliance in regulated sectors such as medical devices and automotive systems.

Optimize material selection for insulation, jacket, and conductor stranding.

Support quality assurance with incoming material checks and routine production tests.

Without systematic testing methods for extra-soft silicone wire durability, products may appear flexible in the short term but fail prematurely when exposed to sustained stress, motion, temperature, or chemical agents.

2.2 Types of Durability Tests

Durability tests for extra-soft silicone wire are typically divided into:

Mechanical durability tests (bending, flexing, abrasion, tensile, torsion)

Electrical durability tests (dielectric strength, insulation resistance, continuity, voltage withstand)

Thermal durability tests (thermal aging, heat shock, cold bend, thermal cycling)

Chemical and environmental tests (oil resistance, solvent resistance, fluid immersion, ozone, UV)

Flammability and safety tests (vertical flame, smoke, toxicity)

The following sections describe each group of testing methods, with a focus on how they are applied to extra-soft silicone cables.

3. Mechanical Durability Testing Methods

Mechanical behavior is critical for extra-soft silicone wire, particularly when used in moving assemblies, wearables, or robotic cable chains.

Mechanical durability tests verify that the conductor and silicone insulation withstand repeated deformation without cracking, tearing, or electrical failure.

3.1 Flexural and Bending Tests

3.1.1 Repeated Bending / Flex Life Test

The repeated bending test, also called a flex life test, simulates real-world motion of extra-soft silicone wire in hinges, cable chains, and dynamic joints.

A typical setup uses a motor-driven arm or pulley system that bends the wire back and forth over a mandrel.

Test principle: The wire is clamped at both ends and bent through a specified angle (e.g. ±90°) around a defined radius while under a set load.

Parameters: Bending radius, bending angle, test speed (cycles per minute), test temperature, applied load or tension.

End-of-test criteria: Electrical failure (open circuit), visible cracking of insulation, or a specified number of cycles without failure (e.g. 1,000,000 cycles).

For extra-soft silicone wire, the flex life is a key selling point. As a result, manufacturers commonly report the number of cycles survived at a certain bending radius and temperature.

3.1.2 Rolling Flex and Cable Chain Tests

For applications in cable carriers or robotic arms, a rolling flex test or cable chain test is often performed:

The silicone wire is installed in a moving energy chain with a defined bend radius.

The chain moves back and forth to simulate dynamic cable motion.

Electrical properties and insulation integrity are periodically checked.

These tests provide realistic performance data for extra-soft silicone wires used in continuous-motion environments.

3.2 Abrasion Resistance Test

Because extra-soft silicone is softer than many thermoplastics, abrasion resistance is a critical durability parameter.

In abrasion tests, the insulation surface is rubbed against abrasive media under controlled conditions.

Typical method: A weighted abrasive wheel or sandpaper moves back and forth over the wire jacket.

Measurement: Number of abrasion cycles until the insulation is worn through to the conductor, or until a test backing is exposed.

Standards used: Variants of abrasion test methods may refer to UL, IEC, or proprietary procedures based on standardized abrasion rigs.

The goal is to ensure the extra-soft silicone insulation maintains protection even when subject to friction, rubbing, or dragging over device housings.

3.3 Tensile Strength and Elongation

Tensile strength and elongation at break are standard material properties for silicone rubber used in wire insulation.

Test method: Dumbbell-shaped or ring test pieces cut from the silicone insulation are pulled in a tensile testing machine until they break.

Measured values: Tensile strength (MPa), elongation at break (%), and modulus at specific strains.

Relevance: Higher elongation indicates good elasticity, which is beneficial for extra-soft silicone wire bending and flexing without cracking.

These mechanical data points are often used for incoming material qualification and process control.

3.4 Tear Resistance

Tear resistance indicates how well the silicone insulation resists the propagation of a cut or nick.

Test specimens: Notched strips of silicone material.

Test result: Tear strength measured in kN/m or N/mm.

High tear resistance helps extra-soft silicone wire survive accidental damage, connector insertion, and tight clamping in devices.

3.5 Torsion Test

Torsion testing evaluates the ability of extra-soft silicone wire to endure twisting motions along its longitudinal axis.

Test procedure: One end of the wire is fixed; the other end is twisted back and forth by a defined angle (e.g. ±180° or ±360°) for many cycles.

Evaluation: Visual inspection for cracking, change in diameter, or conductor breakage; electrical continuity measurements.

This test is particularly important for wires in rotating devices such as gimbals, sensors, or jointed robotic components.

4. Electrical Durability Testing Methods

Electrical durability tests confirm that extra-soft silicone wire maintains safe insulation and reliable conduction even after mechanical and thermal stress.

They include dielectric strength, insulation resistance, and continuity tests.

4.1 Dielectric Strength (Voltage Withstand) Test

Dielectric strength tests measure the maximum voltage that the silicone insulation can withstand without breakdown.

Test principle: A high AC or DC test voltage is applied between the conductor and an external electrode (water bath, metal sleeve, or foil wrap) for a defined time.

Test duration: Commonly 1 minute for type tests, with shorter durations for routine production testing.

Acceptance criteria: No flashover, no breakdown, and leakage current below specified limits.

Extra-soft silicone wire is often used in applications where insulation integrity at elevated voltage and temperature is critical, so dielectric tests are a key component of durability qualification.

4.2 Insulation Resistance Test

Insulation resistance is the resistance between the conductor and the insulation surface (or between conductors in Multi-core cables) under applied DC voltage.

Method: A megohmmeter applies a test voltage (e.g. 500 V DC) and measures the resistance after a specified time.

Units: Megaohms per kilometer or per meter; higher values indicate better insulation performance.

Insulation resistance is typically checked:

At room temperature

After thermal aging

After immersion in water or specific liquids

By comparing initial and aged values, engineers assess the long-term electrical durability of extra-soft silicone wire.

4.3 Continuity and Conductor Resistance

Electrical continuity and conductor resistance tests ensure that the fine-stranded copper conductor inside the extra-soft silicone wire remains intact during flexing, torsion, and thermal cycles.

Continuity: Monitoring for open circuits using low-voltage, low-current measurement during or after mechanical tests.

Conductor resistance: Measured in ohms per kilometer (Ω/km) and compared with nominal values to detect conductor damage or cross-sectional area changes.

These tests are often combined with dynamic mechanical tests to detect intermittent or permanent breaks under motion.

4.4 Partial Discharge and Tracking Tests

In high-voltage or high-frequency applications, partial discharge and tracking resistance can impact durability and safety:

Partial discharge (PD): Measure the inception voltage at which small discharges occur within the insulation defects.

Tracking resistance: Evaluate the tendency of the silicone insulation to form conductive paths under electric stress and contamination.

For extra-soft silicone wire, strong PD performance and high tracking resistance help maintain long-term electrical reliability.

5. Thermal Durability Testing Methods

Silicone is known for excellent high-temperature performance.

Testing methods for extra-soft silicone wire durability must confirm that this performance is maintained over the product lifetime as the cable is exposed to heat, cold, and thermal cycling.

5.1 Thermal Aging Test

Thermal aging is one of the most important tests for silicone-insulated wire durability.

Test method: Samples of extra-soft silicone wire are placed in a hot-air oven at a specified temperature (e.g. 150 °C, 180 °C, or higher) for a set time (hundreds or thousands of hours).

Post-aging tests: Tensile strength, elongation, dielectric strength, and insulation resistance are measured and compared to initial values.

Evaluation: Percent retention of mechanical and electrical properties is assessed against specification limits.

Thermal aging tests help estimate the expected service life at high operating temperatures and ensure that extra-soft silicone wire does not embrittle or degrade prematurely.

5.2 Heat Shock and Hot Deformation

Heat shock tests simulate rapid heating of the insulated wire:

Samples are exposed to a sudden temperature increase above the rated operating temperature.

After exposure, samples are examined for cracks, blisters, or deformation of the silicone insulation.

Hot deformation tests measure dimensional stability under load at high temperature, verifying that extra-soft silicone wire maintains form and functionality when routed close to heat sources.

5.3 Cold Bend and Low-Temperature Flexibility

Although silicone generally performs well at low temperatures, extreme cold may reduce flexibility.

Cold bend test: Wire samples are cooled to a specified low temperature (e.g. −40 °C or −60 °C) and then bent around a mandrel.

Assessment: Check for cracks, splits, or changes in stiffness that could affect durability.

These tests are especially important for extra-soft silicone wires used in outdoor, aerospace, or refrigerated environments.

5.4 Thermal Cycling Test

Thermal cycling subjects extra-soft silicone wire to alternating hot and cold conditions:

Samples are cycled between low and high temperatures (e.g. −40 °C to +125 °C) for many cycles.

After cycling, mechanical and electrical properties are tested again.

Thermal cycling helps reveal fatigue effects at material interfaces (e.g. between conductor and insulation) and verifies long-term durability under fluctuating temperature conditions.

6. Chemical and Environmental Durability Testing

Extra-soft silicone wires are often used in harsh environments with exposure to oils, cleaning agents, sweat, body fluids, and various solvents.

Chemical and environmental testing methods evaluate how these factors influence long-term durability.

6.1 Oil and Fluid Resistance

In automotive, industrial, and appliance applications, exposure to oils and hydraulic fluids is common.

Immersion test: Wire samples are immersed in test fluids (e.g. engine oil, transmission fluid, brake fluid) at specified temperatures for defined times.

Evaluation: Measure changes in weight, volume, mechanical strength, and insulation properties after immersion.

Extra-soft silicone wire formulations may be optimized for better oil resistance; testing validates whether these formulations meet application requirements.

6.2 Chemical Resistance (Solvents, Detergents, Disinfectants)

For medical and laboratory equipment, regular cleaning and sterilization processes expose wires to disinfectants and detergents.

Test procedure: Repeated wiping, spraying, or immersion in representative chemicals.

Assessment: Check for swelling, softening, cracking, discoloration, or change in surface tackiness.

Chemical resistance tests help ensure that the extra-soft silicone jacket maintains appearance, flexibility, and electrical safety over time.

6.3 Water Absorption and Hydrolysis Resistance

Water absorption tests measure how much moisture the silicone insulation takes up when exposed to high humidity or immersion:

Samples are conditioned in water or high-humidity environments for a defined period.

Weight change, swelling, and any loss of mechanical or electrical properties are measured.

Although silicone is typically hydrophobic, formulations may vary. Testing confirms suitability for submerged or humid applications.

6.4 Ozone and UV Resistance

Outdoor and high-altitude applications expose extra-soft silicone wire to ozone and ultraviolet radiation.

Ozone test: Samples are exposed to ozone-rich air at elevated temperature and examined for cracking or degradation.

UV test: Accelerated weathering chambers simulate sunlight exposure with UV lamps.

Good ozone and UV resistance helps maintain surface integrity and prevents early cracking of the silicone insulation.

6.5 Environmental Stress Cracking

Environmental stress cracking occurs when mechanical stress and chemical exposure act together:

Wire samples under bending or tensile stress are exposed to specific chemicals.

Tests determine the time to crack initiation and propagation.

These tests provide a more realistic evaluation of extra-soft silicone wire durability when both mechanical and chemical stresses are present.

7. Flammability and Safety Testing

Safety testing ensures that extra-soft silicone wire does not become a fire hazard and complies with relevant safety codes.

Flammability and smoke tests are often mandatory for building, appliance, and transportation applications.

7.1 Vertical Flame Tests

Vertical flame tests evaluate how the wire insulation behaves when exposed to a flame:

Test method: A section of wire is mounted vertically and exposed to a test flame for a defined period.

Observation: Duration of burning after flame removal, flame propagation, dripping behavior, and whether burning fragments ignite cotton below.

Silicone-insulated wires often show good flame performance, with self-extinguishing behavior and minimal dripping.

Compliance with widely recognized flame classifications is a core aspect of durability testing.

7.2 Smoke Density and Toxicity

Certain applications require low-smoke, low-toxicity wire insulation:

Smoke generation: Evaluate the amount and opacity of smoke produced during combustion.

Toxicity: Measure the concentration of harmful gases released.

Extra-soft silicone compounds may be formulated to meet low-smoke and low-toxicity requirements for use in confined or occupied spaces.

8. Industry Standards and Test References

Many testing methods for extra-soft silicone wire durability are based on internationally recognized standards.

While exact references depend on region and application, the following categories of standards are commonly used:

General wire and cable standards (voltage ratings, construction, tests)

Appliance wiring and equipment wiring standards

Automotive and transportation harness standards

Medical device and laboratory equipment standards

Robotics, automation, and industrial control standards

Engineers typically select the appropriate test reference based on the final application and regulatory requirements.

Many test procedures are harmonized or share similar methodologies across different standards organizations.

9. Typical Specification Tables for Extra-Soft Silicone Wire

The following tables show generic examples of characteristics and testing methods for extra-soft silicone wire durability.

Values are illustrative and should be adapted for specific product designs and standards.

9.1 Typical Mechanical and Thermal Properties

**Table 1 – Example Mechanical and Thermal Properties of Extra-Soft Silicone Wire**
Property	Typical Value Range	Test Method (Generic)	Relevance to Durability
Operating Temperature Range	−60 °C to +180 °C (up to +200 °C for some grades)	Thermal endurance tests in hot-air oven	Defines safe continuous use temperature of silicone insulation
Tensile Strength of Insulation	5–10 MPa (depending on formulation)	Tensile test on dumbbell specimens	Indicates mechanical robustness of silicone insulation
Elongation at Break	300–700 %	Tensile test on dumbbell specimens	High elongation supports repeated bending without cracking
Tear Resistance	10–30 kN/m	Notched strip tear test	Prevents propagation of small cuts or nicks
Minimum Bending Radius	Typically 4–10 × outer diameter	Mandrel bend or flexural test	Defines allowable routing in tight spaces
Flex Life (Bending Cycles)	10⁵ – 10⁷ cycles (application-dependent)	Repeated bending test around specified radius	Measures durability under dynamic flexing
Cold Bend Temperature	Down to −40 °C or −60 °C	Cold bend test on cooled samples	Ensures flexibility and integrity at low temperatures
Thermal Aging Retention	≥ 70 % tensile and elongation retention	Oven aging followed by mechanical testing	Indicates long-term performance at high temperature

9.2 Typical Electrical Properties

**Table 2 – Example Electrical Properties of Extra-Soft Silicone Wire**
Property	Typical Value Range	Test Method (Generic)	Relevance to Durability
Rated Voltage	300 V – 600 V (common for appliance and device wiring)	Design and verification per wire standards	Defines maximum continuous system voltage
Dielectric Strength	Up to several kV/mm (insulation thickness-dependent)	AC/DC voltage withstand test	Ensures safe insulation performance under overvoltage
Insulation Resistance	> 10⁹ Ω·km (typical at room temperature)	DC insulation resistance measurement	Indicates low leakage current and good insulation integrity
Conductor Resistance	Per AWG/cross-section (e.g. 8.21 Ω/km for 0.5 mm² Cu at 20 °C)	Four-wire resistance measurement	Ensures correct conductor size and low power loss
Partial Discharge Inception Voltage	Application-specific; higher is better	PD test in controlled setup	Relates to long-term high-voltage reliability
Tracking Resistance	High CTI rating desired (comparative tracking index)	Tracking and erosion tests	Prevents surface conduction under contamination

9.3 Example Test Matrix for Durability Qualification

**Table 3 – Example Durability Test Matrix for Extra-Soft Silicone Wire**
Test Category	Test Name	Typical Conditions	Key Acceptance Criteria
Mechanical	Repeated Bending / Flex Life	Bending around 5 × OD radius, 30–60 cycles/min, room temperature or elevated temperature	No conductor break, no visible cracks after target cycles
Mechanical	Abrasion Resistance	Standard abrasion wheel, defined load and speed	Minimum number of cycles before insulation wear-through
Mechanical	Tensile and Elongation	Standard tensile specimens from insulation	Within specified strength and elongation range
Thermal	Thermal Aging	Oven at rated temperature for 500–1000 h	≥ specified % retention of tensile and elongation
Thermal	Cold Bend	Test temperature −40 °C or below	No cracks, acceptable flexibility
Electrical	Dielectric Strength	AC or DC test voltage for 1 min	No breakdown, leakage current below limit
Electrical	Insulation Resistance	500 V DC, test at room and elevated temperature	Above minimum insulation resistance threshold
Chemical	Oil Resistance	Immersion in reference oil at 100 °C for defined time	Limited change in weight, mechanical and electrical properties
Environmental	Ozone Resistance	Exposure to ozone-rich air at elevated temperature	No surface cracks or embrittlement
Safety	Vertical Flame Test	Flame application as per test standard	Self-extinguishing, limited burn length, no ignition of cotton

10. Design Considerations to Enhance Durability

Test results for extra-soft silicone wire durability influence design decisions in multiple ways.

Key design parameters that can be adjusted to improve test outcomes include:

Conductor construction: Higher strand counts and finer wires increase flexibility and flex life.

Insulation thickness: Thicker silicone insulation improves dielectric strength and mechanical protection but may reduce flexibility.

Silicone compound selection: Different formulations offer improved tear resistance, oil resistance, or high-temperature performance.

Filler and pigment choice: Fillers can enhance flame resistance and mechanical properties; pigments may influence UV stability.

Reinforcement layers: Optional braids or wraps can provide added abrasion resistance without compromising softness excessively.

Cable geometry: Twisted pairs, shielding, and overall jacket structure affect torsion and flex durability.

By correlating test data with design variations, engineers can systematically optimize extra-soft silicone wire for specific use environments and expected durability targets.

11. Practical Test Planning for Extra-Soft Silicone Wire

Developing an effective test plan for extra-soft silicone wire durability involves several steps:

11.1 Define Application Conditions

Operating temperature range and duty cycle

Expected bending radius and motion frequency

Presence of oils, chemicals, or cleaning processes

Electrical load, voltage level, and insulation requirements

Safety and regulatory constraints

11.2 Select Relevant Tests

Choose mechanical, electrical, thermal, and chemical tests that mirror actual conditions.

Include accelerated aging tests to predict long-term performance within reasonable time frames.

Incorporate safety tests such as flame and smoke where required.

11.3 Establish Acceptance Criteria

Define minimum flex life (number of cycles) at a given bending radius.

Set thresholds for tensile strength, elongation retention, and insulation resistance.

Specify maximum acceptable degradation after thermal or chemical aging.

11.4 Iterate Design and Material Choices

If test results do not meet durability targets, adjust:

Insulation compound or thickness

Conductor size and stranding

Cable geometry and optional protective layers

Retesting after modifications ensures that the extra-soft silicone wire design reliably meets the defined durability objectives.

12. Summary and Key Takeaways

Testing methods for extra-soft silicone wire durability are central to ensuring safe, reliable, and long-lasting performance in demanding applications.

Because these wires are used in flexible, high-temperature, and chemically challenging environments, a comprehensive test strategy is essential.

Mechanical tests (flex life, abrasion, tensile, torsion) confirm that the wire withstands continuous motion and handling without structural failure.

Electrical tests (dielectric strength, insulation resistance, continuity) ensure that the conductive and insulating functions remain stable over time.

Thermal tests (thermal aging, cold bend, thermal cycling) validate performance across wide temperature ranges and long service life.

Chemical and environmental tests verify resistance to oils, solvents, moisture, ozone, and UV exposure.

Safety tests such as flame resistance and smoke evaluation confirm compliance with fire safety requirements.

By integrating these durability testing methods into product development and quality control, engineers and specifiers can confidently select and qualify extra-soft silicone wire for critical applications.

Thorough, standardized testing not only supports regulatory compliance but also reduces the risk of field failures, downtime, and maintenance costs over the lifetime of the installation.

```

News Center
