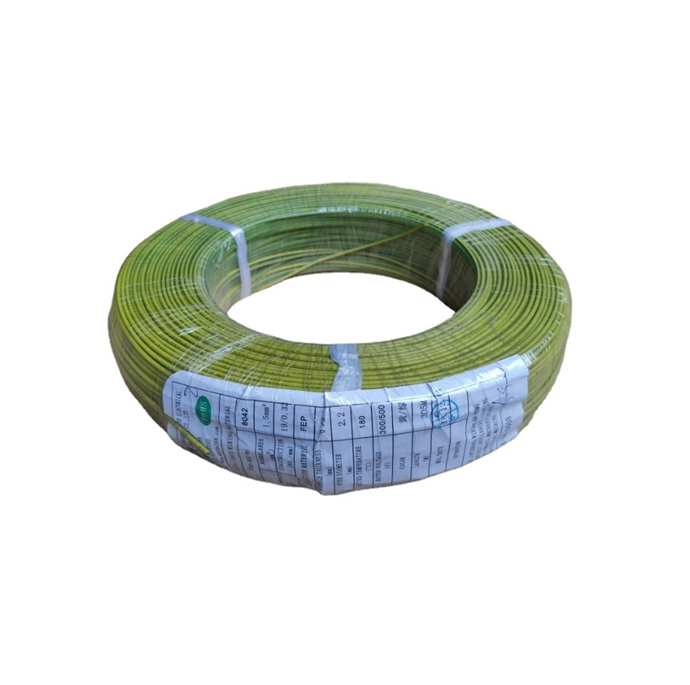

What Makes PTFE Wire Suitable for High-Precision Electrical Connections?

PTFE wire is widely used where electrical connections must be extremely reliable, dimensionally stable and resistant to harsh environments.

From aerospace avionics and medical devices to RF test equipment and precision sensors, PTFE insulated wire has become a preferred

solution for high‑precision electrical connections.

This in‑depth guide explains what PTFE wire is, why PTFE insulation is unique, and which properties make it ideal for

demanding and high‑accuracy applications. It also covers common specifications, performance tables, and key selection criteria

for engineers and technical buyers.

1. What Is PTFE Wire?

PTFE wire is an electrical conductor (usually copper or plated copper) insulated with

polytetrafluoroethylene (PTFE), a high‑performance fluoropolymer. PTFE is best known under the trade name “Teflon,”

but in the wire and cable industry it is generally described simply as PTFE insulation.

PTFE insulated wire combines the excellent conductivity of metallic conductors with the

exceptional electrical, thermal and chemical resistance of PTFE. The result is a wire that can operate in

extreme temperatures, withstand aggressive chemicals, deliver very low dielectric losses and maintain

dimensional stability over long service life.

In high‑precision electrical connections, PTFE wire is used where:

Signal integrity must be preserved at high frequencies and over long distances.

Mechanical dimensions and capacitance must remain stable over temperature and time.

Electrical insulation must not degrade in the presence of chemicals, solvents or moisture.

High reliability and long‑term performance are more important than minimum cost.

2. Why PTFE Is Ideal for High-Precision Electrical Insulation

PTFE belongs to the family of fluoropolymers, characterized by carbon‑fluorine bonds that are among the

strongest in organic chemistry. This structure gives PTFE a unique combination of properties that make it

exceptionally suitable for high‑precision electrical connections.

2.1 Key Electrical Properties of PTFE Insulation

Typical Electrical Properties of PTFE Insulation
Property	Typical Value	Relevance for High-Precision Connections
Dielectric constant (ε_r) at 1 MHz	≈ 2.0 – 2.1	Low and stable dielectric constant helps maintain predictable impedance and low capacitance.
Dissipation factor (tan δ) at 1 MHz	≈ 0.0002	Extremely low loss tangent supports low signal attenuation at high frequencies.
Dielectric strength	≈ 19–60 kV/mm (varies with grade and thickness)	High dielectric strength allows thin insulation layers while maintaining breakdown resistance.
Volume resistivity	> 10¹⁸ Ω·cm	Very high resistivity minimizes leakage currents in precision measurement and sensor circuits.
Surface resistivity	> 10¹⁷ Ω	Reduces surface tracking and surface leakage under high humidity or contamination.

For high‑frequency, low‑noise or high‑impedance circuits, these electrical properties are critical.

The combination of a low dielectric constant, low dissipation factor and high resistivity

helps PTFE wire maintain signal integrity, low crosstalk and consistent impedance.

2.2 Thermal Properties That Support Precision

Typical Thermal Properties of PTFE Insulation
Property	Typical Value	Impact on Wire Performance
Continuous operating temperature	−60 °C to +200 °C (commonly rated), up to 260 °C for some constructions	Wide temperature range allows use in aerospace, industrial ovens, engine compartments and cryogenic systems.
Melting point	≈ 327 °C	High melting point provides a strong margin of safety and dimensional stability at elevated temperatures.
Thermal stability	Excellent, with minimal property change across the operating range	Stable electrical characteristics over temperature help preserve calibration and precision.
Thermal expansion (coefficient)	Relatively high vs. many plastics, but predictable	Predictable expansion allows designers to account for dimensional changes in impedance‑critical designs.

When electrical connections operate over wide temperature swings, many standard plastics experience

significant shifts in dielectric constant, mechanical strength and dimensions. PTFE’s thermal stability

helps maintain consistent electrical parameters over extreme temperature ranges, which is crucial

in metrology equipment, aerospace instrumentation and precision sensors.

2.3 Chemical and Environmental Resistance

PTFE insulation provides outstanding resistance to:

Acids and bases, including strong mineral acids.

Organic solvents and fuels.

Oils, lubricants and hydraulic fluids.

Moisture, humidity and most atmospheric contaminants.

UV radiation and weathering.

In high‑precision electrical connections, environmental stability is as important as initial performance.

Corrosion of conductors and degradation of insulation can alter circuit characteristics and introduce leakage.

PTFE’s chemical inertness protects both the conductor and the insulation, lengthening

service life in harsh industrial, aerospace and laboratory environments.

2.4 Mechanical Properties Relevant to High-Precision Wiring

Selected Mechanical Properties of PTFE Insulation
Property	Typical Behavior	Benefit for Precision Applications
Flexibility	Good, especially with thin walls and fine‑stranded conductors	Allows tight routing in compact equipment without excessive stress on terminations.
Abrasion resistance	Moderate; can be improved with braids or jackets	Suitable for many precision devices; added protection used in high‑wear environments.
Creep and cold flow	PTFE can exhibit creep under long‑term load	Must be considered in terminations and clamping; proper design avoids loosening and deformation.
Low friction coefficient	Very low (≈0.04–0.1)	Facilitates easy pulling through conduits and minimizes wear when wires move relative to each other.
Non‑adhesive surface	Most materials do not stick to PTFE	Reduces accumulation of contaminants that could affect creepage and clearance distances.

3. How PTFE Wire Enables High-Precision Electrical Connections

3.1 Stable Impedance and Low Signal Loss

PTFE wire is frequently used in high‑frequency and RF applications because its low dielectric constant and

ultra‑low dissipation factor result in:

Low attenuation per unit length, preserving signal amplitude and waveform shape.

Predictable impedance in controlled‑impedance cables and coaxial constructions.

Minimal phase distortion due to low dielectric dispersion across broad frequency ranges.

In precision environments such as test and measurement systems, RF communication links and

high‑speed digital interconnects, PTFE insulated conductors and PTFE dielectric coaxial cables

help maintain repeatable, calibrated performance.

3.2 High Insulation Resistance and Low Leakage Currents

Many high‑precision electrical connections involve very small currents, high impedances or ultra‑low noise levels.

Examples include:

Electrometer circuits and picoamp measurements.

Precision sensor outputs (thermocouples, RTDs, strain gauges).

Medical monitoring equipment and bio‑potential measurements.

High‑impedance amplifier inputs and reference voltage distribution.

With volume resistivity above 10¹⁸ Ω·cm, PTFE insulation minimizes leakage currents

and helps preserve signal fidelity and measurement accuracy, even under high humidity and over long cable runs.

3.3 Dimensional Stability for Reproducible Connections

High‑precision electrical connections often rely on consistent geometry to maintain

characteristic impedance, capacitance or inductive coupling. PTFE wire supports this by offering:

Stable insulation thickness over a wide temperature range.

Minimal shrinkage or swelling due to moisture absorption (PTFE is essentially non‑hygroscopic).

Long‑term stability of dielectric properties with minimal aging.

This dimensional and electrical stability helps high‑precision equipment stay within calibration and avoids

the drift associated with many standard plastic insulations, particularly in demanding laboratory and industrial settings.

3.4 High Temperature Capability and Heat Resistance

In many precision applications, the electronics are located in environments where temperatures

would rapidly degrade conventional PVC or polyethylene wire. PTFE wire maintains insulation integrity and

electrical properties up to around 200 °C in continuous service, with some constructions rated higher.

This is critical in:

Aerospace and aviation wiring near engines and bleed air ducts.

Industrial measurement systems mounted on reactors, furnaces or turbines.

Automotive test cells and under‑hood instrumentation harnesses.

High‑power RF amplifiers and precision power supplies.

3.5 Excellent Chemical and Moisture Resistance

In chemical processing plants, pharmaceutical facilities, offshore platforms or laboratories,

high‑precision electrical connections can be exposed to a variety of aggressive chemicals, cleaning agents and solvents.

PTFE’s extraordinary chemical resistance prolongs the life of instrument wiring and prevents

insulation breakdown, swelling or cracking that could degrade measurement accuracy.

PTFE wire is also extremely resistant to moisture ingress. Where other insulation materials can absorb water,

altering their dielectric constant and surface resistance, PTFE maintains stable performance in humid,

condensing or outdoor environments.

3.6 Low Outgassing for Vacuum and Space Applications

In vacuum systems, space hardware and some analytical instruments, outgassing from materials can contaminate

surfaces, optics and sensors. PTFE is known for relatively low outgassing compared with many other plastics

when properly processed, making PTFE wire well‑suited for:

Spacecraft harnesses and satellite wiring.

High‑vacuum measurement equipment.

Cleanroom and ultra‑clean process control systems.

4. Typical Conductor Materials and Constructions for PTFE Wire

PTFE wire can be manufactured with a range of conductor materials and constructions to meet

different precision and reliability requirements.

4.1 Common Conductor Materials

Conductor Materials Used with PTFE Insulation
Conductor Type	Typical Use in PTFE Wire	Key Benefits
Annealed copper	General purpose PTFE hook‑up and equipment wire	Excellent conductivity, good flexibility, cost‑effective.
Tinned copper	Electronics, control wiring, soldered terminations	Improved solderability, corrosion resistance and ease of stripping.
Silver‑plated copper	High‑temperature and high‑frequency applications	Maintains conductivity at elevated temperatures, reduced contact resistance, improved RF performance.
Nickel‑plated copper	Very high temperature and corrosive environments	Excellent oxidation resistance and strength at elevated temperatures.
High‑strength copper alloys	Aerospace and high‑reliability harnesses	Higher mechanical strength, better resistance to vibration and flexing.

4.2 Stranding and Flexibility

PTFE wire may use solid conductors or stranded conductors.

For high‑precision electrical connections in confined spaces or in equipment that experiences vibration or motion,

fine‑stranded constructions are often preferred because they:

Offer greater flexibility and fatigue resistance.

Reduce the risk of conductor breakage at terminations.

Allow tighter bend radii without damage.

4.3 Single-Core vs. Multi-Core PTFE Cables

PTFE insulation can be applied to individual wires or used as part of a multi‑core cable construction.

Single‑core PTFE wire: Used for internal equipment wiring, jumpers, point‑to‑point connections and lead wires.

Multi‑core PTFE cables: Used where multiple high‑precision electrical connections are routed together,
often with shielding and jackets for additional protection and noise reduction.

5. Typical Specifications for PTFE Wire

5.1 Common Size and Rating Parameters

Typical Specification Parameters for PTFE Insulated Wire
Parameter	Description	Typical Range or Note
Conductor size	Diameter or AWG size of the conductor	Commonly from 40 AWG (fine) to 4 AWG (large), depending on application.
Stranding	Number and diameter of individual strands	From solid to very fine stranding (e.g. 19, 37, 61 strands, etc.).
Insulation thickness	Radial thickness of PTFE insulation	Thin wall to heavy wall constructions available; often 0.1–0.8 mm for small wires.
Overall diameter	Finished wire or cable diameter	Critical for connector selection and space‑constrained equipment.
Voltage rating	Maximum continuous operating voltage	From low‑voltage signal levels to several kV, depending on construction.
Temperature rating	Approved operating temperature range	Typically −60 °C to +200 °C; some specialized constructions exceed 250 °C.
Flammability	Compliance with flammability standards	Many PTFE wires comply with stringent aviation or industrial flame‑retardant requirements.
Shielding	Optional metallic shield for noise immunity	Braid, foil or combination shields available for EMI/RFI control.
Color coding	Insulation color for identification	Multiple colors and stripes available for harness organization.

5.2 Example PTFE Hook-Up Wire Specification Table

The table below illustrates example data for a range of PTFE insulated hook‑up wires. Values are indicative and not tied to any specific brand.

Example PTFE Hook‑Up Wire Data (Indicative)
AWG Size	Conductor Area (mm²)	Typical Stranding	Nom. Insulation Thickness (mm)	Approx. O.D. (mm)	Current Rating (A, chassis wiring)	Typical Voltage Rating
26	0.13	7 × 0.16 mm	0.25	≈ 1.1	≈ 2.2	300 V – 600 V
24	0.20	7 × 0.20 mm	0.25	≈ 1.2	≈ 3.0	300 V – 600 V
22	0.32	7 × 0.25 mm	0.30	≈ 1.5	≈ 5.0	300 V – 600 V
20	0.52	7 × 0.32 mm	0.30	≈ 1.7	≈ 7.0	300 V – 600 V
18	0.82	19 × 0.23 mm	0.40	≈ 2.2	≈ 10.0	600 V
16	1.3	19 × 0.29 mm	0.40	≈ 2.5	≈ 13.0	600 V

The combination of fine stranding and thin yet robust PTFE insulation gives these hook‑up wires

excellent flexibility and high temperature performance, suitable for high‑precision internal wiring.

6. Comparison: PTFE Wire vs. Other Insulated Wires

To appreciate what makes PTFE wire especially suitable for high‑precision electrical connections,

it helps to compare it with common alternative insulation materials such as PVC, XLPE, silicone rubber

and other fluoropolymers like FEP or PFA.

6.1 Comparative Property Table

Comparison of Common Wire Insulation Materials
Property	PTFE	PVC	XLPE	Silicone Rubber	FEP / PFA
Continuous service temperature (typ.)	Up to 200–260 °C	Up to 70–105 °C	Up to 90–125 °C	Up to 150–200 °C	Up to 200–250 °C
Dielectric constant (1 MHz)	≈ 2.0–2.1	≈ 3.0–4.0	≈ 2.3–2.4	≈ 2.8–3.0	≈ 2.1–2.2
Dissipation factor	Very low	Moderate	Low	Moderate	Very low
Chemical resistance	Excellent	Good, but susceptible to some solvents	Good	Moderate to good	Excellent
Mechanical robustness	Good; may require care with abrasion	Good, cost‑effective	Good; tough	Soft and flexible, but lower tear strength	Good
Flame resistance	Inherently flame resistant	Requires additives	Requires additives	Variable	Inherently flame resistant
Cost level	Higher	Low	Medium	Medium	High
Suitability for high‑precision RF / low leakage	Excellent	Limited	Good	Moderate	Excellent

Compared with PVC or XLPE, PTFE and related fluoropolymers provide superior high‑frequency performance,

higher temperature ratings and better chemical resistance. PTFE is often selected for the most demanding

high‑precision applications where these benefits justify the higher material and processing cost.

6.2 PTFE vs. FEP and PFA in Precision Applications

FEP (fluorinated ethylene propylene) and PFA (perfluoroalkoxy) are also fluoropolymers used for high‑performance wire insulation.

They offer:

Slightly higher dielectric constant than PTFE, but still low and stable.

Good chemical and temperature resistance, comparable to PTFE in many respects.

Better processability in extrusion due to thermoplastic behavior.

For some high‑precision electrical connections, FEP or PFA wire may offer similar performance with different

mechanical or processing advantages. However, PTFE remains a benchmark for extreme temperature resistance

and ultra‑low loss dielectric performance, making it highly attractive for RF, microwave and sensitive

instrumentation circuits.

7. Typical Applications of PTFE Wire in High-Precision Connections

PTFE insulated wire is used across many sectors where reliability and precision are critical.

7.1 Aerospace and Avionics

Instrumentation and sensor wiring in aircraft and spacecraft.

Engine and nacelle wiring where high heat and vibration are present.

Flight control systems and communication harnesses requiring stable signal transmission.

7.2 Medical and Laboratory Equipment

Patient monitoring systems and diagnostic instruments.

Electrosurgical devices and precision imaging equipment.

Analytical instruments where contamination and outgassing must be minimized.

7.3 Test and Measurement Systems

Precision multimeters, oscilloscopes and spectrum analyzers.

Calibration equipment requiring stable connections over time and temperature.

High‑voltage probes and low‑current measurement leads with high insulation resistance.

7.4 RF, Microwave and High-Speed Digital

Coaxial cables using PTFE as the dielectric for RF and microwave signal routing.

High‑speed data links where impedance control and low attenuation are vital.

Communication systems, radar equipment and satellite payload wiring.

7.5 Industrial Automation and Process Control

Sensor and actuator wiring in chemical plants and refineries.

High‑temperature monitoring points on furnaces, kilns and reactors.

Control cabinets where space constraints and high density wiring require thin, reliable insulation.

7.6 Automotive and Transportation

Under‑hood instrumentation harnesses for test and development.

High‑voltage and high‑temperature zones in electric vehicles (EV) and hybrid systems, when specified.

Rail and marine applications exposed to vibration, moisture and temperature extremes.

8. Design Considerations When Using PTFE Wire

When specifying PTFE wire for high‑precision electrical connections, several design factors should be carefully evaluated.

8.1 Matching Wire Type to Application Needs

Key questions include:

What is the maximum operating temperature and duty cycle?

What voltage level and insulation thickness are required?

Is the application primarily signal, control, data or power?

Are there strong RF fields, electromagnetic interference or high‑frequency content?

Will the wire experience continuous motion, flexing or vibration?

Answering these questions guides the selection of conductor size, plating type, stranding, insulation thickness and any

shielding or jacketing required.

8.2 Termination, Soldering and Connectorization

PTFE’s high temperature resistance and low surface energy affect termination techniques. Considerations include:

Ensuring stripping tools are compatible with PTFE insulation to avoid conductor damage.

Using suitable soldering temperatures, especially with silver‑ or nickel‑plated copper conductors.

Selecting connectors rated for the wire’s overall diameter and temperature environment.

Accounting for potential creep or cold flow in clamped terminations by using properly designed strain relief and crimp barrels.

8.3 Bend Radius and Routing

Although PTFE wire can be very flexible, minimum bend radius recommendations should be observed to prevent:

Insulation cracking or stress marks over extended service life.

Conductor fatigue in dynamic applications.

Especially in high‑precision RF or controlled‑impedance connections, sharp bends can

alter local impedance and VSWR, so routing should be planned to maintain consistent geometry.

8.4 Shielding and Noise Control

High‑precision electrical connections often require excellent noise immunity and low crosstalk. PTFE wire and cable constructions

can incorporate:

Braided shields of tinned, silver‑plated or bare copper for broad‑band EMI protection.

Foil shields for improved coverage at higher frequencies.

Double shields combining braid and foil for maximum attenuation of external noise.

PTFE’s dielectric properties help ensure that shields and conductors maintain consistent impedance characteristics.

8.5 Compliance and Standards

PTFE wires for high‑precision electrical applications may be produced to meet industry and regulatory standards such as:

Military and aerospace wiring specifications.

UL or IEC insulation and temperature ratings.

Flammability and smoke emission requirements for transportation.

Medical equipment and bio‑compatibility standards, where applicable.

Confirming compliance ensures that PTFE wire will perform as required in safety‑critical and regulated applications.

9. Advantages and Limitations of PTFE Wire

9.1 Main Advantages that Benefit High-Precision Connections

Exceptional thermal stability from cryogenic to very high temperatures.

Outstanding electrical characteristics including low dielectric constant, low dissipation factor and high resistivity.

High chemical and environmental resistance for long service life in harsh conditions.

Low outgassing suitable for vacuum and space applications.

Non‑hygroscopic and weather‑resistant, supporting stable performance over time.

Flame resistance and low smoke generation compared with many common plastics.

Compatibility with high‑reliability conductor platings such as silver and nickel.

9.2 Potential Limitations to Consider

Higher cost than commodity wire insulations like PVC or PE.

Processing challenges due to PTFE’s non‑thermoplastic nature (often requiring specialized extrusion and sintering).

Creep and cold flow under long‑term compressive loads, requiring careful design of terminated joints.

Moderate abrasion resistance, sometimes necessitating additional jackets or protective layers in high‑wear environments.

Potential for off‑gassing at very high temperatures if overheated beyond design limits,
so proper derating and installation are important.

When weighed against these factors, engineering teams typically choose PTFE wire where the

performance advantages directly contribute to measurement accuracy, system reliability and service life.

10. How to Select PTFE Wire for High-Precision Electrical Connections

The process of selecting PTFE wire for high‑precision electrical connections can be approached systematically,

focusing on both electrical and environmental requirements.

10.1 Define Electrical Performance Requirements

Operating voltage and required safety margin.

Current level and acceptable voltage drop.

Frequency range (DC, low‑frequency AC, high‑frequency, RF, microwave).

Required signal integrity (loss, reflection, crosstalk and noise immunity).

Insulation resistance and leakage current limits.

10.2 Define Environmental and Mechanical Conditions

Ambient and hot‑spot temperatures, including transients.

Exposure to chemicals, oils, fuels, cleaning agents or radiation.

Presence of moisture, condensation, dust or outdoor weather.

Vibration levels, mechanical shock and continuous or repeated flexing.

Space constraints, routing complexity and required bend radius.

10.3 Choose Conductor and Insulation Configuration

Select conductor size and plating (bare, tinned, silver‑plated or nickel‑plated copper).

Decide between solid or stranded conductors based on flexibility needs.

Determine insulation wall thickness considering voltage and mechanical protection.

Specify shielding if EMI/RFI is a concern.

Consider multi‑core constructions for complex harnesses requiring multiple precise connections.

10.4 Verify Standards and Testing

Ensure compliance with relevant electrical, flammability and environmental standards.

Review available test data for dielectric strength, insulation resistance and aging performance.

Confirm long‑term reliability test results where high‑precision operation over many years is required.

11. Frequently Asked Questions about PTFE Wire

11.1 Why is PTFE wire often used in RF and microwave circuits?

PTFE wire is favored in RF and microwave circuits because its low and stable dielectric constant,

extremely low dissipation factor and high insulation resistance help maintain consistent impedance and

minimize signal loss. These properties are essential for precise RF transmission, matched lines and

low‑noise measurement systems.

11.2 Can PTFE wire be used at cryogenic temperatures?

Yes. PTFE retains flexibility and electrical performance even at cryogenic temperatures, making PTFE insulated

wire suitable for cryogenic instrumentation, superconducting magnet systems and low‑temperature physics experiments.

Its low temperature capability complements its high‑temperature stability across an exceptionally wide range.

11.3 Is PTFE wire suitable for medical devices?

PTFE wire is widely used in medical and diagnostic equipment due to its chemical inertness, high purity,

low outgassing and stable electrical properties. However, for implantable or patient‑contact devices,

additional bio‑compatibility and regulatory considerations apply, and materials must be evaluated according to

specific medical standards and approvals.

11.4 How does PTFE wire perform in high‑voltage precision applications?

With its high dielectric strength and extremely high insulation resistance, PTFE wire is well‑suited for many

high‑voltage precision uses, such as test leads, high‑voltage probes and insulation for sensitive circuits near

high‑potential components. Proper design is still required to control electric field stress, creepage and clearance

distances in high‑voltage assemblies.

11.5 Is PTFE insulation resistant to UV and outdoor exposure?

PTFE exhibits excellent resistance to UV radiation and weathering. This makes PTFE insulated wire

well suited to outdoor and space environments, where sunlight, ozone and atmospheric contaminants

could rapidly degrade less robust insulations.

12. Conclusion: Why PTFE Wire Excels in High-Precision Electrical Connections

PTFE wire stands out among wire and cable technologies when high‑precision electrical connections are required.

Its unique combination of thermal, electrical, chemical and mechanical properties enables

outstanding reliability, low signal loss, and stable performance over wide temperature ranges and long service life.

Key reasons PTFE wire is chosen for high‑precision applications include:

Very low dielectric constant and loss for superior high‑frequency and RF performance.

High insulation resistance and dielectric strength supporting low leakage and safe spacing.

Resistance to extreme temperatures, from cryogenic levels up to 200–260 °C.

Exceptional chemical inertness and resistance to moisture, UV and environmental stress.

Compatibility with fine‑stranded, plated conductors and shielded constructions for precision wiring.

For engineers and designers working with sensitive measurement systems, high‑frequency electronics,

aerospace platforms, medical instruments or advanced industrial automation, PTFE insulated wire

provides a robust, high‑performance foundation for accurate, repeatable and long‑lasting electrical connections.

News Center
