If you are sourcing UL fluoroplastic high-temperature cable online, you need more than a simple product link.

You must understand what these cables are, which UL standards apply, how to compare different constructions,

and how to evaluate online distributors and platforms before purchasing. This in-depth guide provides

industry-generic, non-branded information that can be used as educational content for a blog,

directory page, or industry resource page.

definition">1. What Is UL Fluoroplastic High-Temperature Cable?

ul-standards">2. Key UL Standards for Fluoroplastic high-temperature cables

fluoroplastics-types">3. Common Fluoroplastic Materials Used in UL High-Temperature Cables

advantages">4. Advantages of UL Fluoroplastic High-Temperature Cable

applications">5. Typical Applications and Industries

constructions">6. Typical Constructions and Design Options

specifications-table">7. Typical Specifications Table

selection">8. How to Select the Right UL Fluoroplastic High-Temperature Cable

online-channels">9. Where to Buy UL Fluoroplastic High-Temperature Cable Online

procurement-tips">10. Online Procurement Checklist and Best Practices

faq">11. Frequently Asked Questions

1. What Is UL Fluoroplastic High-Temperature Cable?

A UL fluoroplastic high-temperature cable is an electrical cable or wire that:

Uses fluoropolymer (fluoroplastic) insulation and/or jacketing, such as FEP, PTFE, or PFA.

Is designed for continuous or intermittent operation at elevated temperatures, often from 150 °C to 250 °C or higher, depending on the material and construction.

Has been evaluated and certified by UL (Underwriters Laboratories) under specific standards for safety and performance.

Because the product is UL listed, UL recognized, or UL compliant, it satisfies stringent safety requirements.

When you search for where to buy UL fluoroplastic high-temperature cable online, you are typically looking for

cables that have:

Clear UL style numbers printed on the insulation or jacket.

UL markings such as UL Listed or UL Recognized Component.

A UL file number associated with the manufacturer or cable family.

Fluoroplastics are known for exceptional thermal, chemical, and electrical properties, which make these cables

suitable for harsh conditions, including extreme heat, aggressive chemicals, and demanding industrial environments.

2. Key UL Standards for Fluoroplastic High-Temperature Cables

UL fluoroplastic high-temperature cables are tested against a variety of UL standards. While there are many

different standards, the following are commonly associated with high-temperature and fluoroplastic insulated cables:

UL Standard	Title / Scope	Relevance to Fluoroplastic High-Temperature Cable
UL 758	appliance wiring material (AWM)	Defines construction and testing requirements for insulated wires and cables used as components in appliances and equipment.
UL 62	Flexible Cords and Cables	Covers flexible cords and cables, including high-temperature versions for portable equipment.
UL 83	Thermoplastic-Insulated Wires and Cables	Includes requirements for thermoplastic insulation; certain fluoroplastics fall under this category.
UL 94	Tests for Flammability of Plastic Materials	Not a cable standard per se, but fluoroplastic insulation is often evaluated for flammability according to this test.
UL 1581	Reference Standard for Electrical Wires, Cables, and Flexible Cords	Provides many test methods used in other cable standards, including heat, flame, and electrical tests.
UL 444	Communications Cables	Applies to communications and data cables; fluoroplastics may be used where high temperature or low smoke is required.

When buying UL fluoroplastic high-temperature cable online, confirm:

The UL style number (e.g., style classified under UL 758 AWM).

The temperature rating and voltage rating listed in the UL file or datasheet.

Any additional ratings such as VW-1 flame test, FT1/FT2, or low-smoke, low-halogen.

3. Common Fluoroplastic Materials Used in UL High-Temperature Cables

The term “fluoroplastic” or “fluoropolymer” covers multiple materials. In UL high-temperature cable design,

the most commonly used fluoroplastics include:

Material	Full Name	Typical Temperature Range	Key Features	Typical Uses in Cable
FEP	Fluorinated Ethylene Propylene	-65 °C to +200 °C (varies by design)	Excellent chemical resistance, low friction, good dielectric strength, relatively easy to extrude.	Insulation and jacket for data cables, appliance wire, hook-up wire, and instrumentation cables.
PTFE	Polytetrafluoroethylene	-70 °C to +260 °C (varies by design)	Outstanding temperature resistance, extremely low friction, very high chemical inertness.	high-temperature wire, aerospace cables, sensor leads, high-frequency coaxial cables.
PFA	Perfluoroalkoxy	-65 °C to +260 °C (varies by design)	Similar to PTFE but melt-processable, excellent chemical and thermal resistance.	Harsh chemical environments, semiconductor manufacturing, industrial ovens, high-temp control cables.
ETFE	Ethylene Tetrafluoroethylene	-65 °C to +150 °C or 155 °C (typical)	Tough, abrasion-resistant, good dielectric properties, better mechanical strength.	Industrial wire, robotics cables, thin-wall automotive wiring, rail and transIT cable.
MFA	Modified Fluorinated Ethylene Propylene (Fluorothermoplastics)	Similar to PFA (application-dependent)	Balance of processability and performance, used in niche high-performance cables.	Specialty sensor cables, high-purity applications, custom designs.

When choosing where to buy UL fluoroplastic high-temperature cable online, you will often encounter product

names like FEP-insulated UL hook-up wire, PTFE high-temperature appliance wire,

or PFA high-temperature control cable. Ensure the cable type matches the environment in which

it will be used.

4. Advantages of UL Fluoroplastic High-Temperature Cable

UL fluoroplastic high-temperature cables offer several key advantages that justify their widespread use in

demanding applications:

4.1 High Temperature Resistance

Continuous operation at elevated temperatures where standard PVC, PE, or rubber insulation would fail.

Short-term or intermittent exposure to even higher temperatures, depending on the design.

Stable electrical performance with minimal degradation under thermal stress.

4.2 Excellent Chemical Resistance

Resistant to many acids, bases, solvents, oils, and fuels.

Suitable for wiring in chemical processing plants, laboratory equipment, and semiconductor manufacturing.

4.3 Superior Electrical Properties

Low dielectric constant and low dissipation factor, especially important for high-frequency and RF cables.

High insulation resistance and breakdown voltage.

Stable electrical characteristics across a wide temperature and frequency range.

4.4 Flame Resistance and Low Smoke

Many fluoroplastic cables achieve UL VW-1 or similar flame test ratings.

When formulated appropriately, fluoroplastics can produce low smoke and low toxicity, which is critical in confined spaces.

4.5 Mechanical Durability

Good abrasion resistance and cut-through resistance (especially with ETFE and certain blends).

Maintains flexibility over a wide temperature range.

Resistant to aging, UV exposure (for some grades), and environmental stress cracking.

In combination with UL certification, these advantages make UL fluoroplastic high-temperature cables

a preferred choice in critical systems where failure is not acceptable.

5. Typical Applications and Industries

UL fluoroplastic high-temperature cables are used in a wide range of sectors. Understanding typical applications

helps you determine which specification to request when buying online.

Industry / Sector	Typical Applications	Common Cable Features
Industrial Automation	Temperature sensors, heaters, control cabinets, motor leads, robotics.	High-temperature rating, oil resistance, abrasion-resistant jacket, UL AWM style numbers.
Appliances & Consumer Equipment	Ovens, grills, coffee machines, HVAC units, laboratory devices.	UL appliance wiring material (UL 758 AWM), FEP or PTFE insulation, flexible construction.
Aerospace & Defense	Avionics wiring, sensor leads, instrumentation cables, high-altitude systems.	Lightweight, high temperature, low smoke, high reliability, PTFE or ETFE insulation.
Automotive & Transportation	Engine compartment wiring, exhaust sensor cables, rail and transit wiring.	Thin-wall ETFE, abrasion resistance, high-temp ratings, flame retardancy.
Semiconductor & Cleanroom	Chemical delivery systems, wafer processing equipment, clean ovens.	PFA or PTFE insulation, low outgassing, high purity, chemical resistance.
Oil, Gas & Energy	Downhole sensor cables, refinery instrumentation, power plant controls.	High temperature, chemical and oil resistance, robust jacketing, UL and other regional approvals.
Medical & Life Sciences (equipment side)	Diagnostic equipment, sterilizable cables for devices, lab analyzers.	High-temperature sterilization capability, chemical resistance, small diameters.

When you look for where to buy UL fluoroplastic high-temperature cable online, consider the

industry requirements above and verify that the chosen product meets the applicable UL style and operating environment.

6. Typical Constructions and Design Options

UL fluoroplastic high-temperature cables are available in many constructions. Common options include:

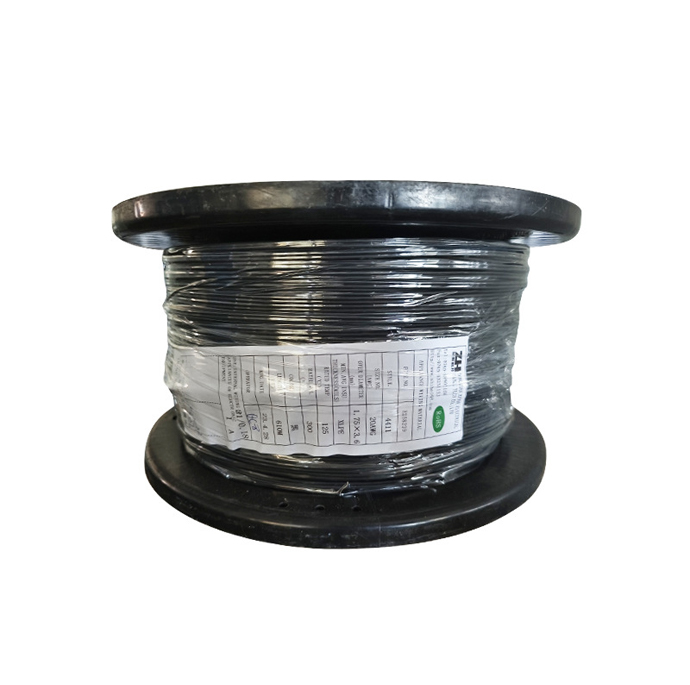

6.1 Single-Conductor Hook-Up Wire

Conductor: Solid or stranded copper (bare or tinned).

Insulation: FEP, PTFE, PFA, or ETFE.

UL Style: Many AWM styles such as UL 1332, UL 1213, UL 1180 (varies by design).

Use: Internal wiring of appliances, control panels, electronic equipment.

6.2 Multi-Conductor Control and Instrumentation Cables

Conductor: Stranded copper, often tinned or silver-plated for high temperature.

Insulation: Individual conductors insulated with FEP/PTFE/PFA.

Shielding: Overall foil/braid shield for EMI/RFI protection.

Jacket: Fluoroplastic outer jacket or high-performance thermoplastic.

Use: Process control, signal transmission in high-temperature areas.

6.3 Coaxial and RF Cables

Dielectric: PTFE or FEP for low-loss, high-frequency transmission.

Outer Jacket: Fluoroplastic jacket for superior chemical and thermal resistance.

Use: High-frequency instrumentation, aerospace communication, radar systems.

6.4 High-Temperature Power Cables

Conductor: Copper or nickel-plated copper for very high temperatures.

Insulation: Thick-wall fluoroplastic or composite insulation.

Use: Heating elements, high-temperature power supply, furnace controls.

When buying UL fluoroplastic high-temperature cable online, verify:

Number of conductors and AWG sizes.

Shielding requirements (unshielded, overall shielded, individually shielded pairs).

Outer jacket material and color.

UL style and any other compliance markings.

7. Typical Specifications Table

The table below summarizes typical specifications you may see when you browse product listings for

UL fluoroplastic high-temperature cables online. Values are representative and vary by manufacturer

and product family; always consult the actual datasheet.

Parameter	Typical Range / Option	Notes for Online Buyers
Conductor Size (AWG)	30 AWG to 4/0 AWG (varies by construction)	Smaller AWG for electronic hook-up wire; larger sizes for power and heating applications.
Conductor Material	Bare copper, tinned copper, silver-plated copper, nickel-plated copper	Plating improves solderability, corrosion resistance, and high-temperature performance.
Voltage Rating	300 V, 600 V, 1000 V, or higher (per UL style)	Verify UL style to ensure the voltage rating matches your system requirements.
Temperature Rating	150 °C, 200 °C, 250 °C, 260 °C (continuous)	Check both continuous operating temperature and any short-term ratings.
Insulation Material	FEP, PTFE, PFA, ETFE, blends	Select based on maximum temperature, flexibility, and chemical exposure.
Jacket Material	Fluoroplastics (FEP, PFA, ETFE), high-temp thermoplastic, or no jacket (single conductor)	A jacket adds mechanical protection, identification, and additional flame performance.
Flame Rating	UL VW-1, FT1, FT2, or other tests	Look for UL flame test compliance for applications with strict fire safety requirements.
Shielding	Unshielded, foil shield, braid shield, foil + braid	Shielding is important in noisy environments or for sensitive signals.
Certifications	UL Listed / Recognized, CSA, RoHS, REACH	UL is the primary focus; other regional or environmental regulations may also apply.
Color Options	Standard colors (black, red, white, etc.) or custom	Color-coding simplifies identification and maintenance.
Packaging	Spools, reels, cut lengths, coil packs	Online suppliers often offer different packaging options depending on order quantity.

8. How to Select the Right UL Fluoroplastic High-Temperature Cable

Before deciding where to buy UL fluoroplastic high-temperature cable online, define your technical requirements.

Use the checklist below as a starting point:

8.1 Define Electrical Requirements

Voltage rating of the system (e.g., 300 V, 600 V).

Current carrying capacity and conductor size (AWG).

Frequency of the signal (for RF or data cables).

8.2 Define Environmental Conditions

Maximum continuous temperature and any transient peaks.

Exposure to chemicals, oils, solvents, or cleaning agents.

Need for UV resistance if used outdoors.

Presence of vibration, mechanical abrasion, or movement.

8.3 Define Safety and Regulatory Needs

Applicable UL standard and UL style number.

Required flame test performance (e.g., VW-1, FT1).

Other approvals like CSA, IEC, EN, or local building codes.

8.4 Define Mechanical Requirements

Minimum bend radius and flexibility needs (e.g., for robotic arms).

Diameter constraints in conduits or cable trays.

Required shielding for EMC control.

Once you have these parameters, you can search online for UL fluoroplastic high-temperature cable

with filters such as temperature rating, conductor size, insulation material, and UL style.

9. Where to Buy UL Fluoroplastic High-Temperature Cable Online

Many buyers want clear guidance on where to buy UL fluoroplastic high-temperature cable online

while avoiding direct manufacturer promotion. In practice, UL-certified fluoroplastic cables are available

through several generic categories of online channels:

9.1 Global B2B Marketplaces

Global B2B platforms aggregate multiple cable producers and trading companies. Typical characteristics include:

Large catalogs of UL fluoroplastic hook-up wire, high-temperature cables, and specialty constructions.

Advanced filters for insulation material, voltage, UL style, temperature rating.

Quotation-based purchasing, often for medium and large volumes.

Options to request custom labeling, printing, or packaging.

When using B2B marketplaces, verify the supplier’s UL file number and request third-party documentation

to ensure authenticity of UL certification.

9.2 Specialized Industrial Cable E-Commerce Sites

Some online stores focus primarily on industrial cable and wire. They typically:

Maintain extensive online catalogs of UL high-temperature wire and fluoroplastic cable.

Offer technical datasheets with UL styles, temperature ratings, and fluoroplastic materials.

Provide cut-to-length options for smaller projects.

Allow you to purchase directly by credit card, purchase order, or online payment systems.

These sites often categorize products by function, such as:

UL appliance wire FEP 200 °C

PTFE high-temperature hook-up wire

High-temp multi-conductor control cable

9.3 General Electronic Component Distributors

Large electronic distributors also list UL fluoroplastic high-temperature cables alongside semiconductors and components.

Inventory often includes UL AWM style wires, PTFE hookup wires, FEP-insulated cable.

Online parametric search lets you filter by UL style, conductor size, insulation material, and temperature.

Minimum order quantities may be lower, making them suitable for prototypes and small-batch builds.

9.4 Regional Electrical Wholesaler Portals

Many traditional electrical wholesalers offer online ordering platforms. Features include:

Stock of commonly used UL high-temperature wires for local industries.

Integration with ERP systems for corporate buyers.

Pickup and local delivery options, reducing lead time.

9.5 OEM and Cable Assembly Integrators

Even when you buy through an assembler, the core wire or cable may be UL fluoroplastic high-temperature type.

These integrators:

Offer custom cable assemblies using specified UL fluoroplastic wires.

Can recommend appropriate UL styles and fluoroplastic materials for your design.

Provide engineering support, test reports, and documentation.

9.6 Key Considerations When Choosing an Online Channel

Factor	Why It Matters	What to Check Online
UL Certification Authenticity	Ensures compliance with safety standards.	UL style number, UL file reference, downloadable certificates.
Stock Availability	Affects delivery time and project schedules.	Real-time inventory, lead times, backorder status.
Minimum Order Quantity (MOQ)	Important for small projects or prototypes.	Minimum length per size, per color, or per part number.
Customization Options	Needed if standard UL styles do not meet your requirements.	Custom printing, special colors, unique constructions.
Logistics & Shipping	Influences cost and delivery time across regions.	Shipping methods, freight options, international delivery capability.
Technical Support	Helps you select and apply the correct cable.	Availability of datasheets, chat support, engineering contacts.

10. Online Procurement Checklist and Best Practices

When you are ready to buy UL fluoroplastic high-temperature cable online, use the checklist below to

reduce risk and avoid common pitfalls.

10.1 Verify UL-Related Information

Confirm the UL style number is clearly listed.

Check the temperature and voltage rating in the online description.

Request or download the UL certificate or UL file reference when available.

Ensure the cable bears appropriate UL marking text in product photos or sample documentation.

10.2 Compare Fluoroplastic Materials

If the environment is extremely hot (up to 260 °C), consider PTFE or PFA.

For general high-temperature applications up to 200 °C with good processability, FEP is often sufficient.

Where mechanical toughness and abrasion resistance are critical, ETFE may be preferred.

10.3 Check Dimensional and Mechanical Details

Review overall cable diameter and bending radius, especially for multi-conductor or shielded cables.

Confirm the conductor stranding (flexible vs. solid).

Assess whether the cable needs a jacket or will be used as internal wiring only.

10.4 Evaluate Supplier Documentation

Look for PDF datasheets with detailed specifications.

Check for test reports (flame tests, dielectric tests, environmental tests).

Verify compliance with RoHS, REACH, or other environmental directives if required.

10.5 Consider Logistics and Packaging

Choose appropriate spool or reel sizes to minimize waste.

Consider the shipping method and transit time for high-value or urgent orders.

Confirm packaging protection to avoid cable deformation during transport.

10.6 Maintain Traceability

For critical installations, keep a record of the UL file, batch number, and supplier invoice.

Label installations with cable type for future maintenance and replacement.

11. Frequently Asked Questions

11.1 What does "UL fluoroplastic high-temperature cable" mean in practice?

It refers to a wire or cable insulated or jacketed with fluoroplastic (FEP, PTFE, PFA, ETFE, etc.) that has

been tested and certified to a specific UL standard and UL style, with a

defined temperature rating above that of standard PVC or rubber cables. The cable can operate safely at high temperatures

while maintaining electrical and mechanical performance.

11.2 How do I confirm that a cable sold online is truly UL certified?

Check the UL style number and confirm it appears in the product documentation. Ask the seller for the

UL file number and verify it through UL’s public database if necessary. Genuine UL-certified cables

will usually have UL markings printed along the length of the insulation or jacket.

11.3 Can I use a non-UL high-temperature cable in a system that normally requires UL?

In many regulated markets, using a non-UL cable where UL is required can cause code compliance issues,

potential warranty problems, and liability in case of failure or fire. It is generally recommended to use a

UL-certified fluoroplastic high-temperature cable where UL compliance is specified.

11.4 Which fluoroplastic is best: FEP, PTFE, PFA, or ETFE?

The “best” material depends on your application:

FEP: Good all-round performer up to about 200 °C, easier to process, widely available.

PTFE: Outstanding high-temperature performance up to around 260 °C, excellent for extreme conditions.

PFA: Similar temperature range to PTFE, better processability, excellent chemical resistance.

ETFE: Slightly lower temperature rating, but superior mechanical toughness and abrasion resistance.

11.5 Is shielded fluoroplastic cable necessary for high-temperature environments?

Shielding is not dictated by temperature alone. It is required if your application is sensitive to

electromagnetic interference (EMI) or if your cable runs near high-power equipment.

You can buy both shielded and unshielded UL fluoroplastic high-temperature cables online; choose based on

your EMC requirements.

11.6 What information should I provide when requesting a quotation online?

To obtain accurate pricing and availability for UL fluoroplastic high-temperature cable online, specify:

Conductor size (AWG) and material.

Number of conductors and any required shielding.

Insulation and jacket material (FEP, PTFE, PFA, ETFE, etc.).

Voltage and temperature rating.

Required approvals (UL style, possibly CSA or others).

Estimated annual and initial order quantities.

11.7 Can I purchase small quantities of UL fluoroplastic high-temperature wire online?

Yes. Many online distributors and specialized cable e-commerce sites allow purchase of small lengths.

Search by UL style, insulation material, and AWG to find listings that offer cut-to-length

or low minimum order quantities.

11.8 Are there differences between UL "Listed" and "Recognized Component" cables?

UL Listed generally refers to complete products intended for end-use, while

UL Recognized Component applies to components (such as AWM wire) that are used within

a larger UL-listed system or device. Many fluoroplastic high-temperature cables fall under the

UL Recognized Component category (e.g., UL 758 Appliance Wiring Material).

Conclusion

Understanding the fundamentals of UL fluoroplastic high-temperature cable—from materials and UL

standards to applications and online procurement methods—makes it easier to choose the right product and the right

purchasing channel. Whether you are sourcing FEP-insulated hook-up wire, PTFE-based high-temperature cables, or

specialized multi-conductor fluoroplastic cables, defining your technical requirements and verifying UL compliance

are critical steps before deciding where to buy UL fluoroplastic high-temperature cable online.

```

News Center
