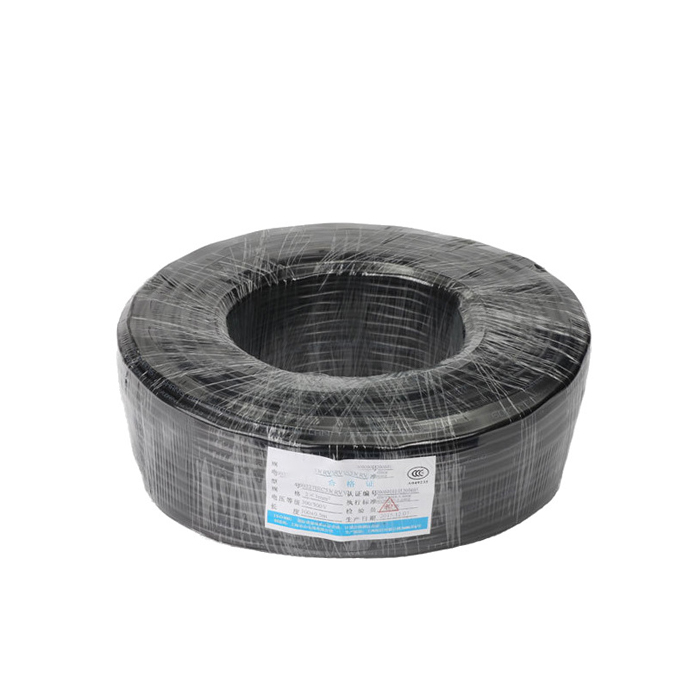

Why Choose Radiation Cross-Linked Wires for Modern Applications?

Radiation cross-linked wires are becoming a key technology in modern electrical and electronic systems.

From electric vehicles and renewable energy to automation and consumer electronics, designers are turning to

radiation cross-linked wire and cable to meet higher performance, safety, and reliability requirements.

This in-depth guide explains what radiation cross-linked wires are, how they are made, and why they are

often preferred over conventional wires in demanding environments.

1. What Are Radiation Cross-Linked Wires?

1.1 Basic Definition

A radiation cross-linked wire is an insulated electrical conductor whose polymer insulation and/or

jacket has been cross-linked using high-energy radiation such as an electron beam (e-beam) or gamma rays.

Cross-linking is a chemical process that forms permanent covalent bonds between polymer chains, turning a

thermoplastic material into a thermoset-like material with enhanced thermal, mechanical, and chemical properties.

In simple terms, radiation cross-linking makes the insulation of a wire:

• More heat-resistant
• More resistant to deformation and creep
• More resistant to abrasion, chemicals, and aging
• Less likely to melt and flow when exposed to overcurrent or high ambient temperature

1.2 Radiation Cross-Linking vs. Chemical Cross-Linking

Both radiation cross-linking and chemical cross-linking aim to create cross-linked polymer structures,

but they use different methods:

While both types of cross-linking are used in the wire and cable industry,

radiation cross-linked wires have become especially popular for low-voltage, thin-wall,

high-performance applications where precise process control and excellent mechanical performance are required.

1.3 Typical Polymers Used

Common insulation and jacket materials for radiation cross-linked wires include:

• Polyolefins (e.g., polyethylene, polypropylene)
• Polyolefin elastomers and blends
• Polyvinyl chloride (PVC) formulations designed for cross-linking
• Fluoropolymers (in some specialized constructions)
• Ethylene vinyl acetate (EVA) and similar copolymers
• Halogen-free flame-retardant (HFFR) compounds

After irradiation, these polymers exhibit significantly improved thermal stability, abrasion resistance,

and mechanical strength compared to their non-cross-linked equivalents.

2. How Are Radiation Cross-Linked Wires Manufactured?

2.1 Standard Production Flow

The typical manufacturing process for radiation cross-linked wires involves:

1. Conductor preparation: Drawing and stranding of copper or aluminum conductors.
2. Insulation extrusion: Applying a selected thermoplastic compound onto the conductor

   using an extrusion line.

3. Cooling: Cooling the freshly extruded wire to stabilize dimensions.
4. Radiation cross-linking: Passing the wire through an electron beam accelerator (or other

   radiation source) to induce cross-linking in the polymer.

5. Post-processing: Optional printing, additional jacketing, cutting, spooling, and testing.

2.2 Electron Beam Cross-Linking

Most radiation cross-linked wires on the market are produced using electron beam (e-beam) cross-linking.

The process works as follows:

• The wire passes through a high-energy electron beam.
• Electrons penetrate the polymer insulation and create free radicals.
• These radicals form covalent bonds between polymer chains, creating a three-dimensional network.
• The degree of cross-linking is controlled by radiation dose (measured in kGy) and exposure time.

Electron beam processing is a dry, fast, and clean technology. It does not require added cross-linking agents

and typically does not introduce harmful byproducts when properly controlled. The process is highly repeatable and

suitable for large-scale continuous production of high-quality radiation cross-linked wire and cable.

2.3 Key Process Variables

Several parameters affect the final properties of radiation cross-linked wires:

3. Key Advantages of Radiation Cross-Linked Wires

3.1 Improved Temperature Resistance

One of the most important reasons to choose radiation cross-linked wires is their elevated temperature rating.

Cross-linking substantially increases the thermal stability of insulation, allowing:

• Higher continuous operating temperatures (often 105°C, 125°C, 150°C or higher)
• Improved short-circuit and overload resistance
• Reduced risk of melting, flow, or deformation under thermal stress

Compared with standard PVC or polyolefin insulation rated at 70°C or 80°C, radiation cross-linked

insulation can safely handle much higher temperatures, making it ideal for:

• Engine compartments in automotive and heavy equipment
• Power electronics and inverters
• Motors, transformers, and heating equipment
• Renewable energy systems and battery packs

3.2 Enhanced Mechanical and Abrasion Resistance

The three-dimensional network formed during radiation cross-linking significantly improves

mechanical performance, including:

• Higher tensile strength
• Increased elongation at break after heat aging
• Better abrasion and cut-through resistance
• Improved resistance to stress cracking

For wiring harnesses that must be pulled through vehicle bodies, machinery, or conduits,

radiation cross-linked wire is much less likely to be damaged during installation or service.

The insulation maintains structural integrity even under vibration, bending, and mechanical stress.

3.3 Reduced Wall Thickness and Weight

Because of their superior mechanical and thermal performance, radiation cross-linked materials

can often be used with thinner insulation walls while still meeting electrical and safety requirements.

This leads to:

• Weight reduction in wiring harnesses
• Space savings in tight routing areas
• Opportunities to downsize conduit and harness bundles

Thin-wall radiation cross-linked wire constructions are widely used in:

• Automotive and commercial vehicles (e.g., thin-wall automotive primary wire)
• Electric vehicles and battery harnesses
• Aerospace and other weight-sensitive systems
• Compact consumer electronics

3.4 Better Chemical, Oil, and Solvent Resistance

The cross-linked polymer network can resist many chemicals more effectively than non-cross-linked thermoplastics.

Depending on the specific material formulation, radiation cross-linked wires can offer:

• Improved resistance to automotive fluids (oils, fuels, coolants, brake fluids)
• Resistance to industrial oils and lubricants
• Improved solvent and cleaning agent resistance
• Better environmental stress crack resistance

In industrial and transportation environments where wires are exposed to oils, greases, and aggressive media,

radiation cross-linked insulation helps ensure long-term reliability and prevents premature failures.

3.5 Excellent Aging and Long-Term Stability

Radiation cross-linked wires typically show superior aging behavior compared to conventional wires.

They maintain electrical and mechanical properties over long service lives in challenging conditions:

• Slower thermal aging at elevated temperatures
• Better UV and ozone resistance for outdoor applications (depending on compound)
• Lower risk of brittleness and cracking over time
• Stable dielectric properties across the operating temperature range

For critical systems where downtime is costly or safety is paramount, such as industrial automation, transportation,

and energy infrastructure, the long-term stability of radiation cross-linked cables is a major advantage.

3.6 Enhanced Flame Retardancy and Low-Smoke Options

Many radiation cross-linked wire compounds are formulated to meet stringent flame retardant and

low-smoke, halogen-free (LSHF) requirements. Cross-linking helps:

• Reduce dripping and flowing during a fire
• Maintain insulation integrity for longer under flame exposure
• Support char formation and act as a barrier

Combined with halogen-free flame retardant fillers, radiation cross-linked materials can meet

tough fire performance standards while offering low smoke density and limited toxic gas emission.

This is especially important for:

• Railway and mass transit applications
• Public buildings and infrastructure
• Shipboard and offshore installations
• Data centers and telecom networks

3.7 Environmental and Process Benefits

From a production and environmental perspective, radiation cross-linked wires offer several benefits:

• No chemical cross-linking agents required in many formulations
• Dry and fast processing with high throughput
• Reduced need for energy-intensive curing ovens or steam curing lines
• Lower production of volatile organic compounds (VOCs) compared to some alternatives
• Enhanced process control and consistent product quality

These advantages support efficient, large-scale production and can simplify compliance with environmental

and occupational safety regulations.

4. Comparison: Radiation Cross-Linked Wires vs. Conventional Wires

4.1 Performance Comparison Table

4.2 When Radiation Cross-Linked Wires Are the Better Choice

Radiation cross-linked wire and cable is generally preferred when:

• High continuous and peak temperature resistance is required
• Wiring must be lightweight and compact with thin-wall insulation
• Mechanical robustness and abrasion resistance are critical
• Exposure to oils, fuels, and aggressive chemicals is expected
• Long service life and reduced maintenance are priorities
• Fire performance and low-smoke, halogen-free properties are required

In less demanding environments with moderate temperature and limited mechanical stress,

standard thermoplastic wires may still be sufficient. However, as modern systems become more compact,

power-dense, and safety-critical, radiation cross-linked wires offer a future-ready solution.

5. Typical Technical Specifications for Radiation Cross-Linked Wires

The technical specifications of radiation cross-linked wires vary depending on the specific product family,

insulation compound, and application standard. However, some typical parameter ranges are common across the industry.

5.1 Conductor Ranges

5.2 Insulation and Jacket Properties

5.3 Example: Generic Thin-Wall Radiation Cross-Linked Wire Specification

The following table shows a generic, non-standardized example of typical data for a thin-wall

radiation cross-linked wire used in automotive or industrial applications. Actual values depend on the

specific standard and manufacturer.

6. Standards and Classifications Relevant to Radiation Cross-Linked Wires

Radiation cross-linked wires are designed to meet multiple international, regional, and

application-specific standards. While standards vary by region and segment, common categories include:

6.1 International and Regional Standards

• IEC standards for low-voltage cables and wires
• EN (European Norm) standards for industrial and building wiring
• UL and CSA standards for appliance wiring, equipment wiring, and building wire
• ISO and SAE standards in automotive and transportation

Many standards do not explicitly require radiation cross-linking, but they define performance requirements

such as temperature rating, mechanical properties, flammability, and chemical resistance. Radiation cross-linked

technology is one way to achieve or exceed these requirements.

6.2 Automotive and Transportation Standards

Radiation cross-linked wires are widely used in:

• Automotive primary wire and thin-wall wire families
• Commercial vehicle and off-road machinery wiring
• Railway and mass transit cabling systems

These sectors often specify:

• Higher temperature ratings for engine compartment and high-load circuits
• Enhanced abrasion and chemical resistance
• Fire and smoke performance suitable for passenger safety

6.3 Industrial and Building Applications

In industrial environments, radiation cross-linked cables are used for:

• Machine internal wiring
• Control panels and switchgear
• Industrial robots and automation systems
• Power connections exposed to heat and chemicals

Standards in this area focus on:

• Temperature ratings
• Mechanical robustness and flexibility
• Flame spread, smoke density, and corrosive gas emission

7. Application Areas for Radiation Cross-Linked Wires

7.1 Automotive and Electric Vehicles

The automotive sector is one of the largest users of radiation cross-linked wire technology.

Reasons include:

• High under-hood temperatures near engines and exhaust systems
• Compact routing with limited space in modern vehicle platforms
• Exposure to oil, fuel, brake fluid, and coolants
• Vibration and mechanical stress during vehicle lifetime

Radiation cross-linked wires enable:

• Thin-wall insulation to reduce harness size and weight
• Reliable performance in engine compartment and transmission areas
• Improved safety against overloads and short circuits

In electric and hybrid vehicles, additional requirements arise:

• Higher power density in compact battery and inverter systems
• Elevated temperatures due to frequent fast charging and high current flows
• Integration with battery management systems and high-voltage components

Radiation cross-linked wire and cable technology helps meet these demanding requirements

while supporting lightweight and efficient vehicle design.

7.2 Industrial Automation and Robotics

Modern automation systems feature:

• High cycle counts with continuous motion
• Exposure to industrial oils, coolants, and cleaning agents
• Requirement for minimal downtime and high reliability

Radiation cross-linked wires are used in:

• Robot internal wiring and dress packs
• Control cables for servo drives and motors
• Sensor and actuator wiring in harsh conditions
• Power distribution in compact control cabinets

The improved mechanical strength and chemical resistance of radiation cross-linked

insulation helps prevent cable failures that could stop production lines or require

costly service interventions.

7.3 Renewable Energy and Power Electronics

Renewable energy systems such as solar, wind, and battery storage often operate at elevated temperatures

and expose wiring to UV radiation, moisture, and temperature cycling.

Radiation cross-linked wires are used in:

• Photovoltaic systems and solar string connections
• Battery storage systems and battery management wiring
• Power conversion equipment, inverters, and converters

Benefits include:

• Enhanced resistance to UV and environmental aging
• Stable electrical properties over the life of the installation
• Compact wiring solutions to support high power density

7.4 Consumer Electronics and Appliances

In consumer devices and household appliances, radiation cross-linked wires are chosen when:

• Operating temperatures approach or exceed standard PVC limitations
• Space is extremely limited and thin-wall solutions are required
• Reliability and safety are a concern over many years of use

Typical applications:

• Internal wiring of ovens, heaters, and high-power appliances
• Power supplies, adapters, and compact power electronics
• Electronics modules in confined or thermally stressed environments

7.5 Railway, Marine, and Aerospace

These sectors place very strict requirements on:

• Fire behavior and smoke production
• Mechanical performance under vibration and movement
• Weight reduction and space optimization

Radiation cross-linked wires, especially in halogen-free flame-retardant designs,

help meet these requirements and improve passenger and crew safety.

8. Design Considerations When Specifying Radiation Cross-Linked Wires

8.1 Matching Temperature Rating to Application

When specifying radiation cross-linked wires, choose a temperature rating that covers:

• Maximum ambient temperature
• Temperature rise due to current loading
• Possible overload and fault conditions

Common choices are:

• 105°C for general high-performance applications
• 125°C for under-hood automotive and industrial use
• 150°C and above for extremely demanding or compact designs

8.2 Selecting the Right Insulation Compound

Different radiation cross-linked compounds offer different balances of:

• Flexibility vs. rigidity
• Flame retardancy vs. mechanical performance
• Halogen-free vs. standard formulations
• Chemical resistance vs. cost and processability

Engineers should carefully evaluate:

• Required standards and approvals
• Exposure to oils, fuels, and chemicals
• Installation conditions (bending radius, pull forces)
• Environmental conditions (UV exposure, moisture, ozone)

8.3 Conductor Sizing and Voltage Class

While radiation cross-linking mainly affects insulation,

the overall cable design must still meet ampacity and voltage clearance requirements.

Consider:

• Conductor cross-section based on current and allowable voltage drop
• Insulation thickness for the desired voltage rating
• Derating factors for ambient temperature and bundling

Radiation cross-linked insulation allows a thinner wall for a given voltage in many cases,

but actual dimensions must follow relevant standards and safety regulations.

8.4 Installation and Handling

Radiation cross-linked wires are generally easy to handle and install.

Key points include:

• Good flexibility makes routing easier, even with thin walls
• High abrasion resistance reduces risk of damage during pulling
• Insulation retains integrity when bent or tied in bundles

Standard stripping and crimping tools are typically suitable,

but tool settings may need adjustment for thin-wall constructions to avoid conductor damage.

9. Frequently Asked Questions About Radiation Cross-Linked Wires

9.1 Are Radiation Cross-Linked Wires Safe?

Radiation cross-linked wires are safe for end users and installers. During production,

the wire is exposed to controlled radiation in a shielded facility. After processing:

• The wire itself is not radioactive.
• All induced changes are chemical cross-links in the polymer structure.
• Wires can be safely handled, installed, and used like conventional wires.

9.2 How Do Radiation Cross-Linked Wires Affect Cost?

In many cases, radiation cross-linked wires have a higher unit cost per meter compared to

standard thermoplastic wires due to the additional processing step and more advanced materials. However:

• Thin-wall designs can reduce copper and insulation content, lowering total system weight and material usage.
• Improved performance can extend service life and reduce maintenance or downtime.
• Smaller conductor sizes may be possible due to higher temperature ratings, optimizing total cost.

When evaluated at the system level, radiation cross-linked wires often offer an attractive

balance of performance, reliability, and total cost of ownership.

9.3 Can Radiation Cross-Linked Wires Replace All Standard Wires?

Radiation cross-linked wires are not always necessary or cost-effective for every application.

They are most beneficial when:

• Operating temperatures and mechanical stresses are elevated
• Space and weight are critical constraints
• Long service life and high reliability are required

For simple, low-stress applications in benign environments, standard thermoplastic wires may still

provide adequate performance at a lower material cost. The decision should be based on

application requirements, regulatory constraints, and life-cycle considerations.

9.4 Are There Limitations to Radiation Cross-Linking?

While radiation cross-linking is a powerful technology, it has some limitations:

• Very thick insulation layers may be harder to cross-link uniformly with electron beams.
• Some polymers do not cross-link efficiently under radiation and may not show sufficient benefit.
• Cross-linking level must be carefully controlled to avoid over-cross-linking and embrittlement.

Despite these constraints, a wide range of commercially available compounds and designs

make radiation cross-linked wire a practical and proven solution in many industries.

10. Summary: Why Choose Radiation Cross-Linked Wires for Modern Applications?

Radiation cross-linked wires offer a combination of high temperature resistance,

superior mechanical strength, excellent chemical resistance, and thin-wall capability

that is difficult to achieve with conventional wire technologies.

As systems become more compact, powerful, and safety-critical, these advantages become increasingly important.

For engineers, system designers, and specifiers, radiation cross-linked wire technology provides a robust,

future-oriented solution to many of the challenges facing modern electrical and electronic systems.

By understanding how radiation cross-linked wires are produced and which benefits they offer,

it is easier to select the right wire and cable constructions for each application and build systems that are

safer, more reliable, and more efficient.

```
