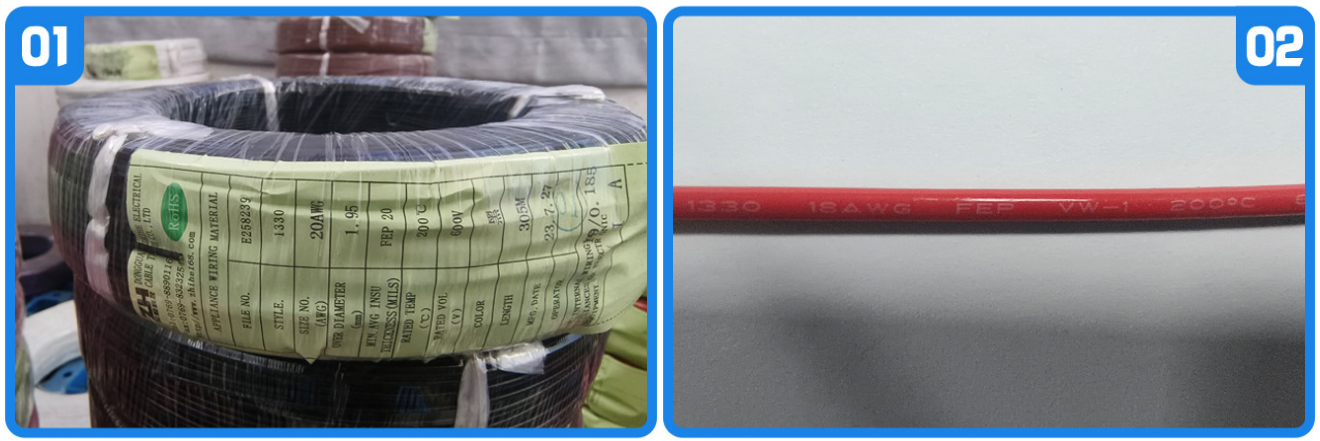

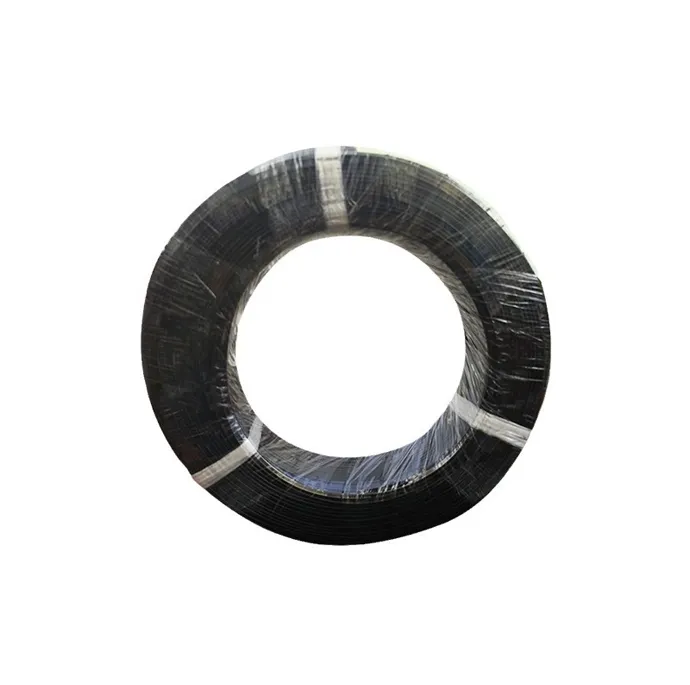

UL1330 20-26AWG tin-plated copper wire insulated high-temperature sensor cable

The UL1330 FEP insulated wire is a high-quality electronic wire specifically designed for applications that demand superior thermal stability, chemical resistance, and electrical reliability. Manufactured with Fluorinated Ethylene Propylene (FEP) fluoroplastic insulation, this wire fully complies with the UL1330 safety standard and is available in conductor sizes ranging from 20AWG to 26AWG.

Inquiry

E-mail：2314093856@qq.com

Detailed Description

Product parameters

Product Model: UL1330FEP fluoroplastic wire

Temperature range: -40℃ to +200℃

Rated voltage: 600V

Wire: Tin-plated copper wire

Line number: 20-26

Insulator: FEP

Product features: Thermosetting product, heat-resistant, acid-resistant, alkali-resistant, oil-resistant, flame-retardant.

Product application: Household appliances, lighting fixtures, electronic tools, temperature sensors, aerospace

Product Description

The UL1330 FEP insulated wire is a high-quality electronic wire specifically designed for applications that demand superior thermal stability, chemical resistance, and electrical reliability. Manufactured with Fluorinated Ethylene Propylene (FEP) fluoroplastic insulation, this wire fully complies with the UL1330 safety standard and is available in conductor sizes ranging from 20AWG to 26AWG.

FEP insulation provides excellent dielectric properties, high mechanical strength, and exceptional resistance to chemicals and environmental stress. Compared to standard PVC or PE insulated wires, FEP insulated wire offers outstanding resistance to extreme temperatures up to 200°C, while maintaining flexibility and durability.

Engineered for use in aerospace, automotive, electronics, telecommunications, and medical equipment, UL1330 FEP wire has become a reliable choice for engineers, manufacturers, and system designers who require safe, efficient, and long-lasting cabling solutions.

Product Features

UL Certified: Complies with UL1330 safety standards for consistent and reliable performance.

Wide Conductor Range: Available in 20AWG, 22AWG, 24AWG, and 26AWG, supporting diverse applications.

High-Temperature Resistance: Continuous operating temperature range of -65°C to +200°C.

Excellent Dielectric Strength: Provides stable insulation performance for electronic and power transmission.

Chemical Resistance: Inert to oils, fuels, acids, solvents, and most corrosive chemicals.

Low Smoke & Flame Retardant: Reduces fire risks and complies with stringent safety requirements.

High Flexibility: Easier handling and installation compared to other high-temperature wires.

Environmental Compliance: Meets RoHS and REACH standards for eco-friendly applications.

Product Advantages

Superior Safety Performance

With UL1330 certification and FEP insulation, the wire offers enhanced fire resistance, dielectric strength, and safety compliance.

Reliability in Harsh Environments

The ability to withstand high temperatures, low temperatures, and aggressive chemicals ensures reliable long-term use.

Long Service Life

Excellent mechanical strength and insulation durability minimize failures and reduce maintenance costs.

Versatility in Design

Available in multiple AWG sizes, the wire can be integrated into a variety of electronic systems and devices.

Global Standard Compliance

Certified to international safety standards, making it suitable for worldwide use without compliance concerns.

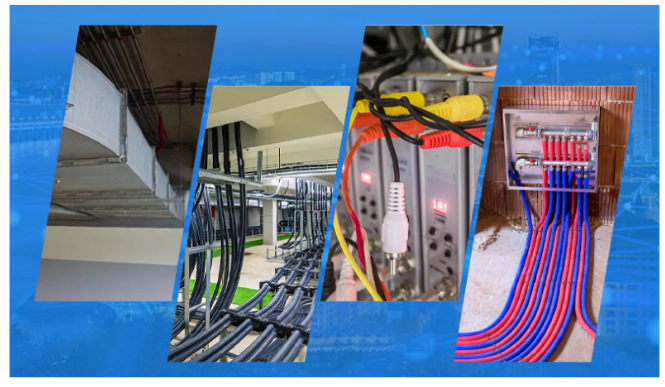

Applications

The UL1330 FEP insulated wire is widely used in industries requiring high-performance electrical wiring:

Aerospace & Aviation: Aircraft wiring, engine control systems, and navigation equipment.

Automotive & Electric Vehicles: Engine compartments, battery wiring, sensors, and high-temperature zones.

Electronics & Consumer Devices: Circuit boards, household appliances, and testing equipment.

Medical & Laboratory Equipment: Diagnostic instruments, surgical devices, and laboratory analyzers.

Telecommunications & Data Transmission: Reliable connections in network systems, servers, and communication devices.

Industrial & Manufacturing: Robotics, automation equipment, heating elements, and semiconductor production.

Product FAQ (Frequently Asked Questions)

Q1: What temperature range can UL1330 FEP wire handle?

A1: It can operate continuously between -65°C and +200°C, making it suitable for extreme environments.

Q2: How does FEP insulation compare to PTFE or PFA?

A2: FEP offers excellent flexibility and easier processability compared to PTFE, while maintaining strong chemical and electrical resistance. Compared to PFA, FEP is slightly less temperature-resistant but more cost-effective.

Q3: Is UL1330 FEP wire flame retardant?

A3: Yes, FEP insulation is naturally flame retardant, produces low smoke, and is self-extinguishing, reducing fire hazards.

Q4: Can UL1330 FEP wire be used in outdoor environments?

A4: Yes, thanks to its UV stability, weather resistance, and chemical inertness, it performs reliably in outdoor and industrial environments.

Q5: What conductor sizes are available for UL1330 wire?

A5: The standard sizes range from 20AWG to 26AWG, suitable for both power and signal transmission.

Q6: Is this wire compliant with environmental regulations?

A6: Yes, it meets RoHS and REACH standards, ensuring it is free from harmful substances and safe for global applications.
